CAS PD-2Z and PD2 Scale Discontinued: PDN Replacement Guide

The CAS PD-2Z Series, also commonly searched as the CAS PD2, PD-2, PD2Z or PD-II scale, has been replaced by the current CAS PDN Series of POS interface scales.

Compare the former PD-2Z models with the current PDN-12, PDN-30 and PDN-60, then confirm capacity, connection type, interface cable and POS compatibility before ordering.

Shop replacement models Confirm compatibility

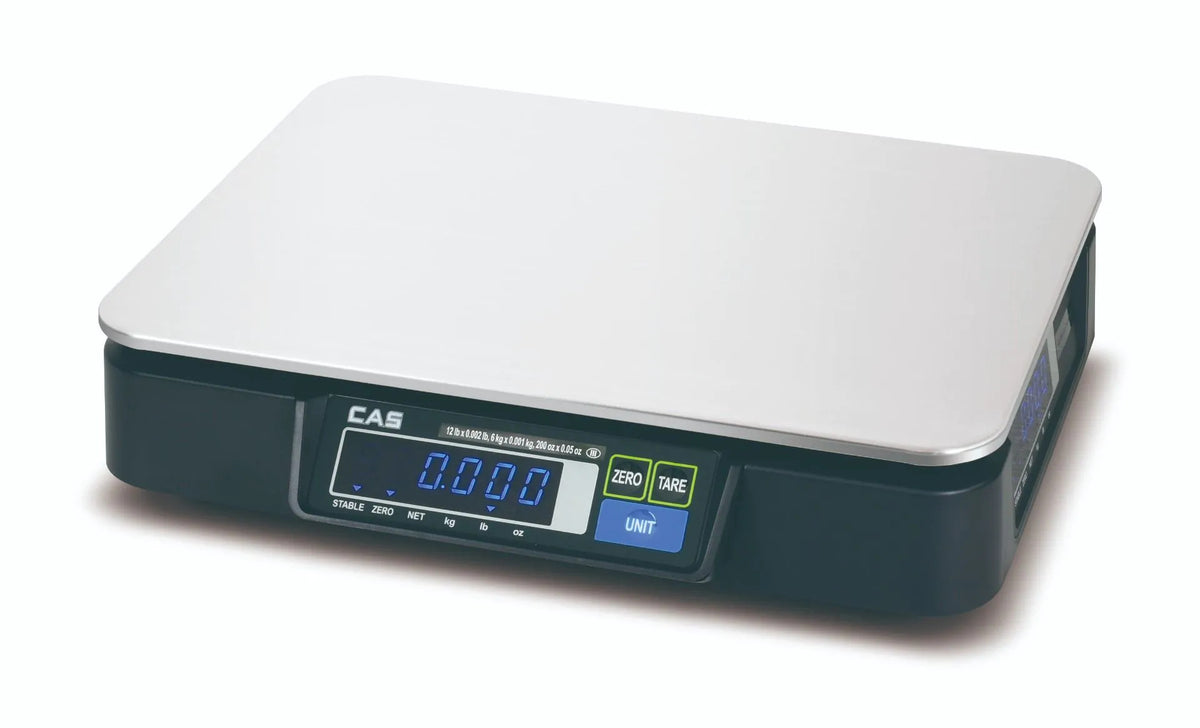

CAS PDN POS interface scale replacing discontinued CAS PD-2Z and PD2 scales

The CAS PD-2Z Series has been discontinued

New purchases should be directed to the current CAS PDN Series. The PDN family is available in 12 lb, 30 lb and 60 lb capacities and is designed to communicate weight data to compatible point-of-sale systems and electronic cash registers.

Existing PD-2Z scales may continue to work in an installed system. However, customers replacing a failed or aging scale should not assume the new model will be plug-and-play with the existing cable, port, protocol or software configuration.

Other names customers use for the CAS PD-2Z

Model names are frequently written differently on purchase records, service tickets and internet searches. Check the label on the existing scale to confirm the exact model and capacity.

  • CAS PD-2Z
  • CAS PD2Z
  • CAS PD 2Z
  • CAS PD-2
  • CAS PD2
  • CAS PD-II
  • CAS PD II
  • PD2 POS scale
  • PD-2Z checkout scale
  • CAS register scale
  • CAS POS scale
  • CAS interface scale
  • CAS retail counter scale
Replacement planning

Should you replace a working PD-2Z now?

Not necessarily. If the existing PD-2Z is operating correctly and remains supported by the current POS system, it may continue to be usable. However, businesses should begin planning for replacement because the PD-2Z is no longer the current model.

The current PD-2Z has failed Evaluate the corresponding PDN model and confirm the required connection, cable and protocol.
You are upgrading the POS system A POS upgrade is a good time to confirm which current scale models and communication methods the new software supports.
You are opening another checkout lane Standardizing on the current PDN family can simplify future purchasing and support.
You operate multiple locations A planned replacement strategy can reduce emergency purchases and inconsistent scale configurations.
The old interface is no longer supported A new cable, communication port, driver or scale protocol may be required.
You want a current, available model The PDN Series is the current CAS checkout-scale family covered by this guide.
Current replacement models

Choose the appropriate CAS PDN scale

Select the replacement according to the heaviest product you need to weigh, the required displayed increment and the capabilities of your POS or cash register. Capacity alone does not confirm compatibility.

Automatic 5% off
CAS PDN-12 12 pound POS interface scale
12 lb capacity

CAS PDN-12

Eligible for the automatic 5% PDN promotional discount.

The lower-capacity PDN model for lightweight products requiring finer displayed increments.

  • 12 lb × 0.002 lb
  • 6 kg × 0.001 kg
  • 200 oz × 0.05 oz
  • NTEP legal-for-trade approval
Shop the CAS PDN-12
Automatic 5% off
CAS PDN-30 30 pound POS interface scale
30 lb capacity

CAS PDN-30

Eligible for the automatic 5% PDN promotional discount.

The current 30 lb model and the logical starting point for businesses replacing a former PD-2Z30 or PD-2ZS30.

  • 30 lb × 0.005 lb
  • 12 kg × 0.002 kg
  • 400 oz × 0.1 oz
  • NTEP legal-for-trade approval
Shop the CAS PDN-30
Automatic 5% off
CAS PDN-60 60 pound POS interface scale
60 lb capacity

CAS PDN-60

Eligible for the automatic 5% PDN promotional discount.

The current 60 lb PDN model for heavier retail products and applications previously using a PD-2Z60.

  • 60 lb × 0.01 lb
  • 30 kg × 0.005 kg
  • 1,000 oz × 0.2 oz
  • NTEP legal-for-trade approval
Shop the CAS PDN-60
Promotional discount applies to eligible CAS PDN products configured in the Spartan POS automatic discount. Discount is shown in the cart and at checkout. No discount code or minimum purchase is required. The promotion cannot be combined with other product, order or shipping discounts. Eligibility and availability may change.
Model transition

CAS PD-2Z to PDN replacement chart

This chart identifies the current PDN model to evaluate. It does not guarantee compatibility with a particular POS system, cash register, interface cable or installation.

Former model Former capacity Current model to evaluate Important consideration
PD-2Z15 15 lb CAS PDN-12 The PDN-12 has a 12 lb maximum capacity. It is not an identical 15 lb replacement. Confirm that 12 lb is sufficient for every product being weighed.
PD-2ZS30 30 lb CAS PDN-30 Confirm the POS protocol, connection type, interface cable and mounting requirements.
PD-2Z30 30 lb CAS PDN-30 The capacity is comparable, but existing PD-2Z cables and configuration settings should not be assumed compatible.
PD-2Z60 60 lb CAS PDN-60 Confirm the required communication port, protocol, cable, power method and counter dimensions.
PD-2Z150 150 lb Contact Spartan POS The PDN Series covered by this guide tops out at 60 lb. A different CAS scale family may be required.

Important: The CAS PDN-12 is the closest current lower-capacity PDN option for a former PD-2Z15. It should not be described as an exact 15 lb replacement.

Designed for checkout

What the CAS PDN scale does

The CAS PDN is a checkout-oriented POS interface scale. When correctly matched and configured, it sends the measured product weight to a compatible POS terminal or electronic cash register, reducing manual weight entry during a transaction.

  • Measures products in pounds, ounces or kilograms
  • Supports USB communication and power
  • Supports RS-232C with the appropriate configuration and accessories
  • Offers optional Bluetooth communication on equipped units
  • Provides selectable ECR protocols
  • Includes zero, tare and unit functions
  • Offers an optional remote customer display
  • Supports an optional edge tray for recessed installations
CAS PDN checkout scale with stainless steel platter and digital display
Current-model features

CAS PDN Series features

POS and ECR interface

Designed to send weight data to compatible POS terminals and electronic cash registers using a supported protocol.

USB communication

USB is the default communication mode and may also supply 5-volt power from a compatible POS terminal.

Readable display

The six-digit LED display shows weight information and stable, zero, tare, kilogram, pound and ounce indicators.

Legal-for-trade models

The PDN Series is listed with NTEP Certificate of Conformance number 22-046 for applicable commercial weighing installations.

Tare function

Subtracts the weight of a container so the operator can display the net weight of the product being sold.

Large platter

The 15-inch by 11-inch platter provides useful counter space for packaged goods, produce and other retail products.

Optional connections

Optional RS-232C, Bluetooth and application-specific interface cables support a variety of installations.

Two-year warranty

The manufacturer brochure lists a two-year warranty for the CAS PDN Series.

Technical information

CAS PDN Series specifications

Verify specifications against the exact model and current manufacturer documentation before purchase or installation. Specifications may change without notice.

Capacity and displayed increments

Model Pounds Kilograms Ounces
PDN-12 12 × 0.002 lb 6 × 0.001 kg 200 × 0.05 oz
PDN-30 30 × 0.005 lb 12 × 0.002 kg 400 × 0.1 oz
PDN-60 60 × 0.01 lb 30 × 0.005 kg 1,000 × 0.2 oz

Physical and operational specifications

Overall dimensions
15.1 in W × 12.1 in D × 3.2 in H
Metric dimensions
384 mm W × 308.4 mm D × 81.8 mm H
Platter size
15 in W × 11 in D
Scale weight
12.3 lb / 5.6 kg
Display
3.7 in × 1.1 in, six-digit LED
Power
USB 5V or optional 5V, 1000mA USB adapter
Operating temperature
14°F to 104°F / -10°C to 40°C
Internal resolution
1/60,000
External resolution
1/6,000 in lb/kg and 1/4,000 in oz, single range
NTEP approval
Certificate of Conformance #22-046
Warranty
Two years
Before placing an order

Confirm compatibility before replacing a PD2 scale

A scale can have the correct capacity and still be incompatible with the existing checkout system. Send Spartan POS the information below before ordering when you are uncertain about the installation.

1. Existing scale model Provide the complete model number from the label on the old scale, such as PD-2Z30 or PD-2Z60.
2. POS software or cash register Include the software name, version and terminal or register model.
3. Connection type Identify whether the existing system uses USB, RS-232 serial, Bluetooth or another interface.
4. Cable information Send a photo of both cable ends and any part number printed on the cable.
5. Required capacity Identify the heaviest product the business expects to weigh, including containers or packaging.
6. Installation style Tell us whether the scale will sit on a counter, be recessed into the counter or use a remote customer display.

Do not assume the existing PD-2Z cable can be reused. The POS protocol, wiring, connector, communication settings, power source and application configuration must all be correct for the replacement scale to work.

Ask Spartan POS to confirm compatibility Compare PDN models
Multi-lane and multi-location projects

Replacing several PD-2Z scales?

Businesses with multiple checkout lanes may benefit from replacing old scales as a planned group instead of waiting for each unit to fail. Standardizing on one current scale family can simplify purchasing, employee training, spare-equipment planning and future support.

  • Mixed PDN-12, PDN-30 and PDN-60 orders
  • Cable and interface review
  • Multi-location fulfillment
  • Staged replacement planning
  • Spare-scale recommendations
5% OFF

Eligible PDN scales receive the automatic promotional discount in the cart and at checkout.

Select replacement scales
Common applications

Where the CAS PDN Series fits

Grocery and produce checkout

Capture the weight of produce and other items sold by weight when paired with compatible POS software and properly configured item records.

Candy and specialty food stores

Use tare to subtract the weight of a container and send the net product weight to a compatible checkout system.

Delis and prepared foods

Support counter transactions involving packaged food when the POS workflow and scale integration are compatible.

Ice cream and dessert shops

Weigh products or containers in checkout workflows using a compatible POS or ECR scale protocol.

Specialty retail

Sell lightweight or bulk products by weight using the PDN model with the appropriate capacity and displayed increment.

Recessed checkout counters

An optional edge tray may support recessed-counter applications when the opening and installation requirements are correct.

Replacement questions

Frequently asked questions

Is the CAS PD-2Z discontinued?

The PD-2Z models covered by this guide have been replaced by the current CAS PDN Series. Spartan POS is retaining PD-2Z information so customers can identify the former scale and find a current model.

Is the CAS PD2 the same as the CAS PD-2Z?

Customers often shorten or vary the model name when searching. PD2, PD-2, PD2Z and PD-II may be used informally, but the model label should be checked for the exact manufacturer model and capacity.

What replaces the CAS PD-2Z30?

The CAS PDN-30 is the current 30 lb model to evaluate. Confirm the POS software, ECR protocol, interface type, cable and configuration before ordering.

What replaces the CAS PD-2Z60?

The CAS PDN-60 is the current 60 lb model to evaluate. Matching capacity does not guarantee the new scale will work with the existing cable or POS setup.

Does the PDN-12 directly replace the PD-2Z15?

Not exactly. The former model had a 15 lb capacity, while the PDN-12 has a 12 lb capacity. The PDN-12 may be suitable only when every item being weighed remains within its 12 lb maximum.

What replaces the PD-2Z150?

The PDN models on this page have maximum capacities of 12, 30 and 60 lb. A 150 lb application may require a different CAS scale family.

Can I reuse my existing PD-2Z serial cable?

Do not assume the old cable is compatible. The wiring, pinout, protocol, communication settings and power requirements must match.

Does the CAS PDN work with every POS system?

No. The POS software must support a compatible scale protocol, and the correct port, cable, driver and configuration must be used.

Does the PDN include an RS-232 cable?

Only accessories specifically listed with the purchased item should be assumed included. Interface cables, remote displays, Bluetooth modules, edge trays and power blocks may be optional.

Can the PDN be powered through USB?

The PDN supports USB 5-volt power. Installations using optional Bluetooth or RS-232C communication may require an optional USB AC power block.

Is the CAS PDN legal for trade?

The manufacturer brochure lists NTEP Certificate of Conformance number 22-046. Local registration, inspection, sealing and installation requirements may still apply.

How does the 5% PDN promotional discount work?

The discount is applied automatically to eligible CAS PDN products in the cart and at checkout. No code or minimum purchase is required. It cannot be combined with other product, order or shipping discounts.

Can Spartan POS help identify the correct replacement?

Yes. Send the old scale model, POS or cash-register model, software name, required capacity, connection type and photographs of the existing cable and scale label.

Save on the current replacement

Replace your discontinued CAS PD2 with a current PDN scale

Select an eligible PDN-12, PDN-30 or PDN-60 and receive the automatic 5% promotional discount in the cart and at checkout. Before ordering, send us the exact model number from the old scale, the name of your POS software or cash register, the required capacity and photographs of both ends of the existing interface cable.

Shop eligible PDN scales Confirm compatibility first

Product availability, promotional eligibility, specifications, included accessories and compatibility may change. Confirm the exact model and installation requirements before ordering.
