Elo 4363L 43-Inch Full HD Open-Frame Touchscreen, TouchPro PCAP, Clear Anti-Friction Glass (E344056)
Elo 4363L 43-Inch Full HD Open-Frame Touchscreen, TouchPro PCAP, Clear Anti-Friction Glass (E344056)
Compatible with:
E344056
Couldn't load pickup availability
Free Shipping Over $500
Fully Secure Checkout
Shop with confidence
Customer Support
Need help choosing the right configuration?
Talk with a Spartan POS hardware specialist about compatibility, accessories, quantities, or deployment requirements.
Product Description

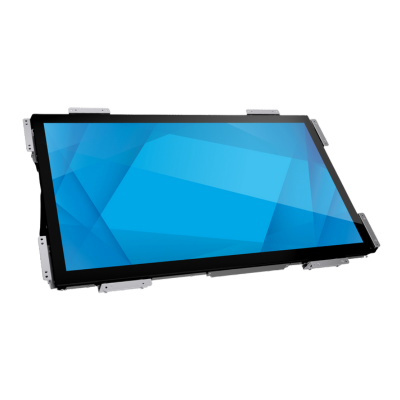

The Elo 4363L (Elo model ET4363L) is a 43-inch Full HD open-frame touchscreen with a slim form factor designed for integration into kiosks, enclosures, counters and cabinets. Part number E344056 is the TouchPro projected capacitive (PCAP) configuration with clear glass and an anti-friction surface. Elo offers the same display with anti-glare glass as part number E344260.
Key features
- 42.5-inch diagonal LED LCD with 1920 x 1080 resolution at 60 Hz and a 16:9 aspect ratio
- TouchPro PCAP with up to 40 simultaneous touches, palm rejection and edge-to-edge glass
- Touch-thru operation behind up to 6 mm of glass or 3 mm of plastic (up to 2 touches), plus support for gloves up to 1.4 mm
- Mounts in landscape, portrait or upward-facing (tabletop) orientation, with flush-mount brackets included
- Two HDMI 1.4 inputs, VGA, USB touch interface and an RJ45 port for the wired OSD remote
- Ambient light sensor that adjusts panel color to the surrounding light, with auto wake
Specifications
| Elo part number | E344056 (TouchPro PCAP, clear with anti-friction) |
|---|---|
| Model | 4363L (ET4363L) |
| Display | 42.5" diagonal active matrix TFT LCD (LED), active area 37.04" x 20.84" |
| Resolution | 1920 x 1080 at 60 Hz, 16:9 |
| Brightness (typical) | 500 nits LCD panel; 425 nits with TouchPro PCAP |
| Contrast ratio | 4000:1 |
| Response time | 8 ms |
| Viewing angle | ±89° (178° total) horizontal and vertical |
| Touch | TouchPro PCAP, 40 touches, palm rejection, touch-thru |
| Touch interface | USB 2.0 Type B |
| Video inputs | 2 x HDMI 1.4 (HDCP capable), 1 x VGA (DE-15) |
| Maximum operating time | 24 hours per day |
| Power | 100-240 VAC, 50/60 Hz; 56.62 W typical when on |
| Mounting | VESA 400 x 400 mm; landscape, portrait or tabletop |
| Dimensions | 39.34" x 23.13" x 2.61" |
| Weight | 37.77 lb (17.17 kg) unpackaged |
| Operating temperature | 0 to 40°C in portrait or landscape; 0 to 35°C in tabletop mode |
| Durability | UL 60950 ball-drop and IK07 impact compliant; IP65 when integrated (per Elo) |
What's in the box
- Quick install guide
- HDMI 1.4 cable, VGA cable and USB (Type A to Type B) cable
- RJ45 wired OSD remote
- Power cables with North America, EU/KR and UK plugs
- 8 sets of flush-mount brackets with 48 screws, and a foam gasket
- EU energy label
Typical applications
- Self-order and self-checkout kiosks
- Payment and ticketing machines
- Wayfinding, point-of-information and interactive signage
- Automation and industrial controls, and operating room control boards
Compatibility
Elo's user manual states that no additional touch drivers are needed on Windows 7, 8 and 10, which use the built-in Windows HID drivers; the display reports up to 40 touches and is factory calibrated. Elo lists its Backpack 4 for Android compute module as an accessory for this model.
How it compares
Elo lists two 4363L configurations with the same display, touch and connectivity specifications. E344056 (this listing) has clear glass with an anti-friction surface, and E344260 has anti-glare glass.
Frequently asked questions
Is the Elo 4363L the same as the ET4363L?
Yes. Elo uses ET4363L as the model name in its documentation, including the energy efficiency fiche and user manual, and 4363L on its product page.
Can the 4363L run 24/7 and mount in portrait or tabletop orientation?
Elo rates the 4363L for up to 24 hours per day. It can be installed in landscape, portrait or upward-facing tabletop orientation; in tabletop mode Elo lists an operating temperature of 0 to 35°C.
Does the 4363L need a separate computer?
Yes. It is an open-frame display with HDMI and VGA video inputs and a USB touch connection, so it runs from a connected computer or a compute module such as Elo's Backpack 4 for Android.
Does the 4363L replace the Elo 4343L?
Yes. Elo's product pages for the 4343L and 4243L open-frame touchscreens state that they have been replaced by the 4363L.
