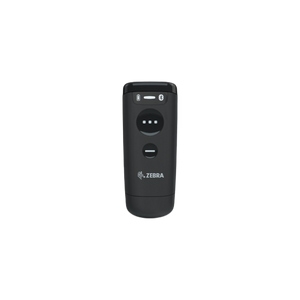

Zebra CS60 Series Companion Scanner, Cordless 1D/2D Standard Range, Midnight Black (CS6080-SR40004VZWW)
Zebra CS60 Series Companion Scanner, Cordless 1D/2D Standard Range, Midnight Black (CS6080-SR40004VZWW)
Compatible with:
CS6080-SR40004VZWW
Couldn't load pickup availability
Free Shipping Over $500
Fully Secure Checkout
Shop with confidence
Customer Support
Need help choosing the right configuration?
Talk with a Spartan POS hardware specialist about compatibility, accessories, quantities, or deployment requirements.
Product Description
The Zebra CS6080-SR40004VZWW is the cordless, standard range scanner in Zebra's CS60 Series of companion scanners, in Midnight Black. It is small enough to carry in a pocket, pairs over Bluetooth with a mobile device or a CS60 cradle, and can later be converted to a corded scanner, so the same unit can move from store aisles to a checkout counter or self-service kiosk.
Key features
- Convertible design: swap the battery for Zebra's corded USB converter (CVTR-U70060C-04) to switch to corded use, and add a Gooseneck Intellistand for hands-free scanning.
- Bluetooth 5.0 Class 1 with up to 330 ft. (100 m) of range from the host, NFC tap-to-pair and Wi-Fi Friendly Mode.
- Contactless Qi charging with no battery contacts to clean; Zebra states off-the-shelf Qi charging pads can be used.
- Full-shift battery: 18 hours and 13,000 scans per full charge, a dedicated battery gauge and tool-free battery replacement.
- 1D, 2D and OCR decoding with a 1,280 x 960 sensor and PRZM Intelligent Imaging, including barcodes on phone displays.
- IP65 sealing and 6 ft. (1.8 m) drop rating in a crevice-free, easy-to-clean housing.
Specifications
| Manufacturer part number | CS6080-SR40004VZWW |
|---|---|
| Configuration | Cordless companion scanner, standard range, Midnight Black |
| Image sensor | 1,280 x 960 pixels; field of view 45° H x 34° V |
| Aimer and illumination | Circular 525 nm true green LED aimer; one warm white LED |
| Decode capability | 1D and 2D symbologies; OCR-A, OCR-B, MICR, US currency |
| Decode range, 13 mil UPC | 1.8 to 19.5 in. (4.6 to 49.5 cm) |
| Motion tolerance | Up to 20 in. (51 cm) per second, 13 mil UPC, optimized mode |
| Wireless | Bluetooth 5.0 with BLE; Class 1: 330 ft. (100 m); Class 2: 33 ft. (10 m); Serial Port and HID profiles |
| Battery rating | 18 hours and 13,000 scans per full charge |
| Durability | Scanner IP65; multiple 6.0 ft. (1.8 m) drops to concrete; 250 tumbles in a 1.5 ft. (0.5 m) tumbler |
| Operating temperature | 32° to 122° F (0° to 50° C) |
| Size and weight | 0.9 in. H x 1.8 in. W x 4.3 in. D; 2.9 oz. (83 g) cordless |
Typical applications
- Retail mobile point of sale, inventory management, cycle counting and merchandising
- Hospitality concession stands, ticket processing and point of sale
- Route accounting, shipping labels and asset tracking
How it compares
Zebra's CS6080-SR400004QVW kit contains this same scanner plus a CR6080-QZ1000XWW Qi pad charger and USB-C cable.
Frequently asked questions
Is a cradle or charger included with CS6080-SR40004VZWW?
Zebra identifies CS6080-SR40004VZWW as the scanner part number. Chargers carry their own part numbers: the CR6080-SC100F4WW standard cradle, 4-slot ShareCradles, or the CS6080-SR400004QVW kit, which adds a Qi pad charger and USB-C cable to this scanner.
Can the CS60 be used as a corded or hands-free scanner?
Yes. Zebra's 7 ft. (2.1 m) corded USB converter (CVTR-U70060C-04) replaces the battery to make the CS60 a corded scanner. On a corded CS60, the optional presentation stand switches automatically between hands-free and handheld modes.
How long does the battery last and how fast does it charge?
Zebra rates the CS60 at 18 hours and 13,000 scans per full charge using a simulated profile of one scan every 5 seconds. A full charge from empty takes 6 hours on standard USB or 3 hours on BC1.2 USB.
What retail tasks is the CS60 designed for?
Zebra lists retail mobile point of sale, inventory management, cycle counting and merchandising among CS60 uses, and designed it to work cordless in store aisles or corded at a checkout counter or self-service kiosk.
Is it durable enough for a stockroom or receiving dock?
Zebra specifies IP65 sealing, multiple 6 ft. (1.8 m) drops to concrete and 250 tumbles, and describes the CS60 as suited to dusty backrooms and receiving docks.
