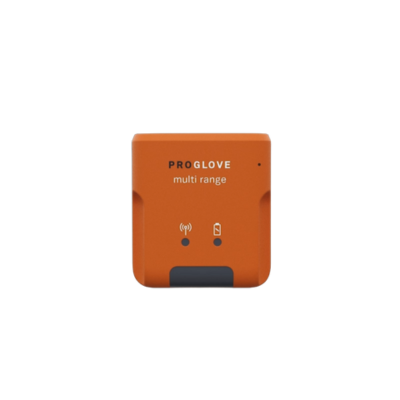

ProGlove MARK 3 Multi-Range Wearable Bluetooth 2D Barcode Scanner (M010)
ProGlove MARK 3 Multi-Range Wearable Bluetooth 2D Barcode Scanner (M010)
Compatible with:
M010
Couldn't load pickup availability
Free Shipping Over $500
Fully Secure Checkout
Shop with confidence
Customer Support
Need help choosing the right configuration?
Talk with a Spartan POS hardware specialist about compatibility, accessories, quantities, or deployment requirements.
Product Description
The ProGlove MARK 3 multi-range (SKU M010) is a wearable 1D and 2D barcode scanner that connects over Bluetooth Low Energy. It weighs 39 g (1.38 oz) and reads barcodes from 10 cm to 6 m (4 in to 20 ft), so workers can scan hands-free during supply chain tasks such as forklift operations, cross docking, picking, packing and sorting. The MARK 3 is triggered with a ProGlove wearable such as the Hand Strap or Index Trigger.
Key features
- Multi-range scan engine: one scanner for close packing labels and distant markers, from 10 cm to 6 m (4 in to 20 ft).
- Lightweight: 39 g (1.38 oz) and 50 x 45 x 17 mm.
- Rugged: IP65 dust and water protection, drops from 2 m (6.5 ft) onto concrete and 2,000 tumbles from 0.5 m.
- Cold and outdoor use: operating temperature of -20 °C to 50 °C (-4 °F to 122 °F).
- Battery: approximately 12,000 scans per charge, depending on the application, and a 2-hour charge in the ProGlove Charging Station.
- Feedback: haptic, acoustic and optical feedback.
- Device management: setup and configuration through ProGlove Insight.
Specifications
| SKU | M010 |
|---|---|
| Scanner type | Wearable multi-range 1D/2D barcode scanner |
| Scan range | 10 cm to 6 m (4 in to 20 ft); example: 13 mil UPC-A from 6.4 to 180 cm (2.5 to 71 in) |
| Decoding | Standard 1D codes including GS1 DataBar; PDF417, MicroPDF417, Data Matrix, QR Code, Micro QR Code, Aztec, MaxiCode; postal codes |
| Resolution and field of view | 2688 x 1520; 37° horizontal, 21° vertical |
| Aimer | Green laser, 520 nm (laser class 2) |
| Wireless | Bluetooth Low Energy (supports 4.0, 4.1, 4.2 and 5.0) |
| Transmission range | Third-party device: 40 m (131 ft) free field, 10 to 20 m (33 to 66 ft) indoor. ProGlove Gateway: 70 m (230 ft) free field, 30 to 40 m (100 to 130 ft) indoor. May be lower in industrial environments. |
| Battery | 670 mAh rechargeable lithium polymer |
| Operating temperature | -20 to 50 °C (-4 to 122 °F); charging 5 to 40 °C (41 to 104 °F) |
Typical applications
- Forklift and vehicle operations
- Cross docking, picking pallets and stocking
- Baggage handling and inbound logistics
- Picking, packing and sorting
- Assembly, sequencing and staging
Compatibility
ProGlove's technical specification lists these connection options: the HID profile for Bluetooth hosts; HID or ProGlove's Insight Mobile app and SDK on Android; HID or the Insight Mobile SDK on iOS; and USB hosts through the ProGlove Gateway. ProGlove describes MARK 3 as ready for pairing with mobile devices, terminals and common smart devices.
Frequently asked questions
What is the scan range of the ProGlove MARK 3?
The MARK 3 multi-range reads barcodes from 10 cm to 6 m (4 in to 20 ft). Actual range depends on symbol size, scan angle, print quality and lighting.
Does the MARK 3 need a trigger or glove?
Yes. ProGlove states the MARK 3 can be triggered only with ProGlove wearables, such as the Hand Strap, Index Trigger or Reel. Wearables, the Charging Station and the Gateway are separate ProGlove products, so confirm which ones your setup needs.
What devices can the MARK 3 connect to?
It connects over Bluetooth Low Energy: HID to Bluetooth hosts, Android and iOS devices, the Insight Mobile app or SDK, and USB hosts through the ProGlove Gateway.
How long does the battery last?
ProGlove rates the 670 mAh battery for approximately 12,000 scans per charge, depending on the application and environment. A full charge takes 2 hours in the ProGlove Charging Station.
Can the MARK 3 be used in cold storage or outdoors?
ProGlove rates it for -20 °C to 50 °C (-4 °F to 122 °F) with IP65 protection against dust and water, and positions it for cold storage and outdoor use.
