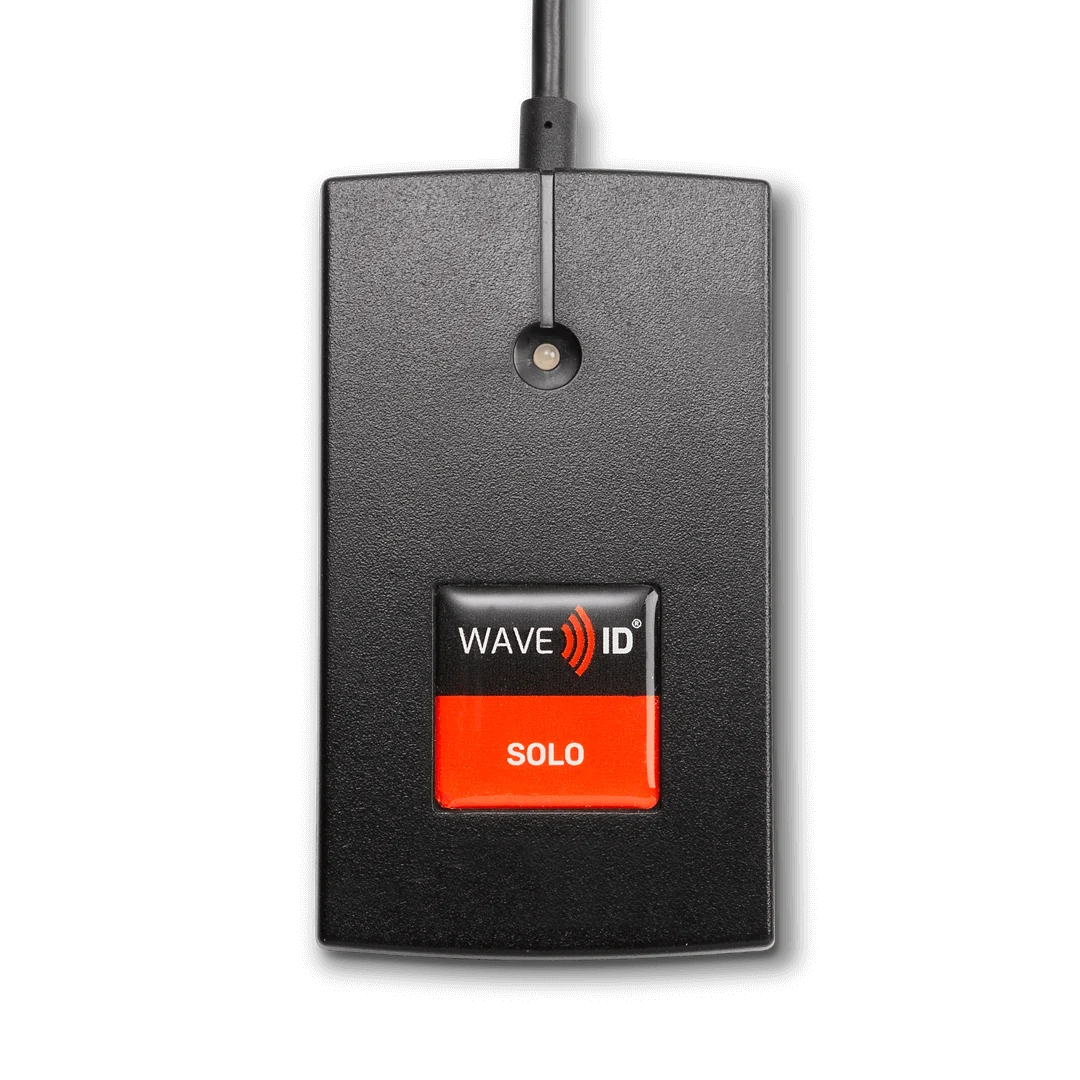

rfIDEAS WAVE ID Solo RDR-7581AKU USB RFID Card Reader (13.56MHz, CSN, HID) (RDR-7581AKU)

rf IDEAS WAVE ID Solo Keystroke 13.56MHz CSN USB Reader – RDR-7581AKU

The rf IDEAS WAVE ID Solo Keystroke 13.56MHz CSN USB Reader, model RDR-7581AKU, is a professional contactless smart card reader designed for secure authentication, user identification, access control workflows, secure print release, healthcare badge login, and embedded system authentication.

This 13.56 MHz CSN reader allows organizations to extend existing smart card and badge systems beyond building access. With plug-and-play USB connectivity and HID keyboard emulation, the reader sends credential data as keyboard input, making it easy to integrate with many applications, operating systems, printers, kiosks, healthcare systems, process controllers, and identity management platforms.

Best For

• Employee login and secure workstation access
• Healthcare environments using badge-based authentication
• Secure print release and printer authentication
• Access control and identity management systems
• Device authentication for shared workstations, kiosks, and embedded systems
• Time and attendance workflows
• Visitor management and check-in applications
• Enterprise IT, healthcare, education, industrial, and secure business environments

Key Features

• Brand: rf IDEAS
• Product Line: WAVE ID Solo Keystroke
• Model / Part Number: RDR-7581AKU
• Reader Type: Contactless smart card reader
• Credential Technology: 13.56 MHz CSN
• Interface: USB
• Output: HID keyboard emulation
• Operation: Read-only credential capture
• Color: Black
• Use Case: Authentication, identification, secure print release, access control, and device login

Compatible With

• Windows systems
• macOS systems
• Linux systems
• Applications that support HID keyboard input
• Access control and identity management platforms
• Secure print release platforms
• Printers, kiosks, embedded systems, and shared workstations
• Healthcare systems and badge-based authentication workflows

Important Compatibility Note

This is a 13.56 MHz contactless smart card CSN reader for authentication and identification workflows. It is not a payment terminal and does not process credit cards, debit cards, EMV payments, NFC mobile wallet payments, or magnetic stripe cards.

This model is designed for 13.56 MHz contactless smart card CSN use. If your organization uses 125 kHz proximity cards, HID Prox, or another badge technology, confirm compatibility before ordering or choose the correct rf IDEAS reader model for your card type.

Designed for Contactless Smart Card Authentication

The rf IDEAS WAVE ID Solo RDR-7581AKU helps businesses use existing contactless smart card systems for more than door access. Employees can present a supported badge or card to authenticate into workstations, release secure print jobs, identify themselves at a kiosk, access supported healthcare systems, or interact with applications that accept credential data through keyboard input.

Because this model uses HID keyboard emulation, it can work with many applications that accept typed input. This makes it a practical option for organizations that want simple card-based identification without complex custom integration.

Plug-and-Play USB Keystroke Output

The WAVE ID Solo Keystroke reader connects through USB and outputs card data as keystrokes. This helps simplify deployment because many systems can receive the credential data in the same way they would receive typed information from a keyboard.

USB keystroke readers are commonly used for login workflows, badge enrollment, secure print release, time tracking, visitor management, and applications where a card number or credential identifier needs to be entered quickly and accurately.

Ideal Use Cases

• Workstation login: Help employees authenticate quickly using supported 13.56 MHz contactless smart cards.
• Healthcare badge login: Support secure access for clinicians, nurses, staff, shared workstations, carts, and healthcare systems.
• Secure print release: Let users identify themselves at compatible printers before releasing sensitive documents.
• Kiosks and embedded systems: Add credential reading to self-service stations, control systems, process equipment, and embedded devices.
• Time and attendance: Use badge-based identification for employee check-in, shift tracking, and attendance workflows.
• Visitor management: Support contactless card-based identification for offices, campuses, facilities, and secure check-in environments.
• Industrial and process control: Use smart card authentication for operator login, device access, and workflow accountability.

Technical Specifications

Manufacturer	rf IDEAS
Product Line	WAVE ID Solo Keystroke
Part Number	RDR-7581AKU
Reader Type	Contactless smart card reader
Credential Technology	13.56 MHz CSN
Frequency	13.56 MHz
Interface	USB
Output Mode	HID keyboard emulation / keystroke output
Operation	Read-only credential capture
Color	Black
Primary Applications	Authentication, identification, secure print release, workstation login, access control, time attendance, kiosk authentication, and device access
Compatible Operating Systems	Windows, macOS, and Linux systems that support USB HID keyboard input

Why Choose a Keystroke Reader?

A keystroke reader is a strong option when your software can accept badge or card data as typed input. Instead of requiring users to manually type an ID number, the reader captures the card data and sends it to the active application. This can reduce manual entry errors, speed up authentication, and make card-based workflows easier to deploy.

Read-Only Credential Capture

The RDR-7581AKU is designed for read-only card identification. It reads credential data from supported 13.56 MHz CSN smart cards and sends that data to the connected system. This supports secure identification workflows without writing data back to the card.

Shop Related rf IDEAS and POS Hardware

• Shop all rf IDEAS readers
• Shop rf IDEAS WAVE ID Solo readers
• Shop WAVE ID Solo keystroke readers
• Shop WAVE ID Solo SDK readers
• RFID hardware and supplies
• Barcode scanners
• Receipt printers
• Mobile computers

Frequently Asked Questions

What card type does the RDR-7581AKU support?

The rf IDEAS WAVE ID Solo RDR-7581AKU is designed for 13.56 MHz contactless smart card CSN authentication and identification workflows.

Does this reader support 125 kHz HID Prox cards?

No. This model is for 13.56 MHz CSN contactless smart card use. If you need 125 kHz HID Prox support, choose a compatible rf IDEAS HID Prox reader model.

Does this reader process payments?

No. This is a credential reader for authentication and identification. It does not process credit cards, debit cards, EMV payments, NFC mobile payments, or magnetic stripe cards.

What does HID keyboard emulation mean?

HID keyboard emulation means the reader sends card data to the computer as if it were typed on a keyboard. This can simplify integration with applications that accept keyboard input.

Can this be used for secure print release?

Yes. This reader can be used in compatible secure print release environments where users authenticate with supported 13.56 MHz contactless smart cards.

Can this be used for healthcare badge authentication?

Yes. Healthcare organizations commonly use badge-based readers for workstation login, secure print release, shared device access, and identity verification, as long as the credential type and software are compatible.

Is this reader plug-and-play?

This model uses USB with keystroke output, which can simplify deployment with systems and applications that accept keyboard input. Compatibility still depends on your software, card type, and credential formatting requirements.

What is the difference between a keystroke reader and an SDK reader?

A keystroke reader sends credential data as keyboard input. An SDK reader is designed for deeper software integration where developers need more control over how card data is captured and used.

Bottom Line

The rf IDEAS WAVE ID Solo Keystroke 13.56MHz CSN USB Reader RDR-7581AKU is a compact, professional smart card reader for secure authentication, workstation login, access control, healthcare badge workflows, secure print release, time attendance, kiosk access, and device authentication. With USB connectivity, HID keyboard emulation, read-only credential capture, and support for 13.56 MHz CSN contactless smart cards, it helps organizations extend existing badge systems into everyday business, healthcare, IT, and industrial workflows.
