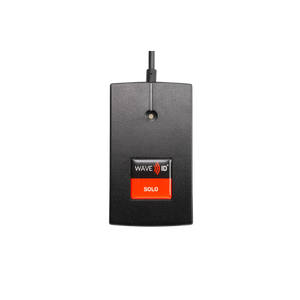

WAVE ID Solo SDK AWID Black USB Reader, RDR-6982AKU

by rfideas
$106.80
SKU RDR-6982AKU

WAVE ID Solo read-only readers were designed for customers seeking to leverage their existing card system for applications beyond building access. Providing exceptional protection while maximizing security on devices such as printers, healthcare technologies, process controllers, autonomous robots and more. The WAVE ID Solo delivers plug and play functionality with proximity and contactless smart cards and integrates with all leading operating systems, applications and embedded controllers. The 13.56 MHz model is compatible with most contactless smart cards and the 125 kHz proximity model provides error-free identification for over 300 million physical access cards in use worldwide.

FEATURES

  • Ideal for time and attendance, training meetings, visitor management

  • Eliminates errors associated with individual ID, manual or keystroke entry

  • Integrates into your software or hardware product through the use of the Universal Software Developer’s Kit (SDK)

BENEFITS

  • Reads nearly all proximity and contactless smart cards

  • Optional LEGIC® technology to serve multiple applications

  • Applicable for secure printing, healthcare applications, and process efficiencies

  • Fully programmable and customizable user defined fields

  • Protect and secure sensitive information

Operating Frequency

Dual 125/132 kHz or 13.56 MHz

Typical Maximum Read Range

1.0” – 3.0” (2.5 – 7.6cm) dependent upon card type and environmental conditions

 Supported Card Types

For a full list of supported card types, click here.

Physical Characteristics

Dimensions
3.6 in × 2.1 in × 0.7 in(9.1 cm × 5.3 cm × 1.8 cm)
Weight
4 oz(113.4 g)
Cable Length

6”, 16” & 6' (Custom Lengths Available. Call our Sales department at (866) 439-4884)

Indicators

Quad-state LED (off, green, amber, red) and beeper

Form Factor

Desktop, Surface Mount, Non-Housed

Power Supply

USB Self-powered; PoE; Serial RS-232: several power options exist

Interface

USB, Serial RS-232, Ethernet

Software Development Kit (SDK)
Yes

Warranty

One year for material/workmanship defects.

Compatible Operating Systems

Windows 7, 8, 10, Linux, macOS and Android
