Warehouse worker scanning a barcode location label on pallet racking
Warehouse & Distribution Guide

Warehouse Location Labeling Guide

How to plan scannable aisle, rack, shelf, bin, pallet-position, staging, dock and cold-storage labels—and choose the printers, media and scanners that make the system work.

Updated August 29, 2026 · Spartan POS hardware guidance

Shop industrial label printers Ask a hardware specialist

Quick answer

Warehouse location labeling assigns a unique human-readable code and scannable barcode to every physical place where inventory is stored or moved. A typical permanent location label identifies a zone, aisle, bay, level and bin—for example, Z01-A03-B12-L02-BIN04. Most permanent rack and bin labels should be printed by thermal transfer on a durable material with an adhesive matched to the surface and temperature. The label format must match the WMS, ERP or inventory system before a full rollout.

What warehouse location labels do

A location barcode turns a warehouse layout into a scannable map. During receiving, putaway, picking, replenishment, cycle counting and transfers, a worker scans the item and the location. The software can then confirm what moved, where it came from and where it went. This reduces wrong-bin inventory, missed picks, manual-entry errors and time spent searching.

Faster putaway

Scan the inbound item and its assigned rack, shelf or bin instead of relying on memory or handwritten notes.

More accurate picking

Direct workers to a precise location and verify that the item was picked from the intended position.

Cleaner inventory records

Count, replenish and transfer inventory by a consistent location ID that the software can audit.

Warehouse location label types

Label type What it identifies Practical consideration
Aisle and zone Traffic paths, departments, freezer zones and workflow areas Use large text and high contrast so workers can read them from a distance.
Rack and bay Rack uprights, bays and pallet sections Confirm scan distance, placement height and whether retroreflective material is needed.
Shelf and bin Small-parts shelves, totes, drawers and forward-pick slots Keep the barcode large enough for the chosen scanner despite limited space.
Pallet position Floor positions, bulk storage and individual pallet slots Use durable, abrasion-resistant media and avoid areas blocked by pallets.
Dock and staging Receiving doors, shipping doors, lanes, packing areas and return zones Label temporary and exception areas so inventory does not disappear between processes.
Freezer and cooler Cold rooms, racks, shelves, bins and refrigerated staging Match the adhesive to both application temperature and service temperature.

How to structure a warehouse location code

Use a consistent hierarchy that employees can understand and software can sort. Keep every segment fixed in meaning and, when possible, fixed in length. Leading zeros prevent software from sorting A10 before A2.

Z01Zone
A03Aisle
B12Bay
L02Level
BIN04Bin

Full scannable location: Z01-A03-B12-L02-BIN04

Do this before printing: confirm allowed characters, maximum length, barcode symbology and location hierarchy with your WMS, ERP, POS, ecommerce or inventory software. Print and scan a small pilot set before producing the full warehouse.

1D or 2D barcode?

Code 128 / 1D

Often the simplest choice for location IDs. It is widely supported, fast to scan and readable at longer distances when printed large enough.

QR Code / 2D

Useful when labels are compact or a workflow requires more encoded data. Requires a 2D barcode scanner.

Data Matrix / 2D

Good for dense codes in limited space, but the WMS and scanning hardware must explicitly support it.

For most warehouse locations, encode the stable location ID—not changing product quantities or descriptions. The software should use the location ID to look up current information.

Choose label material, adhesive and print method together

Environment Typical media choice What to verify
Clean indoor shelf or bin Paper or polypropylene, depending on expected life Surface texture, handling, abrasion and replacement cycle
Permanent rack or pallet position Thermal-transfer polyester or other durable synthetic Adhesive, scan distance, sunlight, dust and abrasion
Freezer or cooler Cold-temperature synthetic with matched ribbon Application temperature, service temperature, condensation and moisture
Outdoor or chemical exposure Durable synthetic with resin ribbon, if compatible UV, water, cleaning agents, chemicals and surface energy
Temporary staging or receiving Direct thermal may be appropriate Required life, heat, sunlight and removability

Direct thermal vs. thermal transfer

Direct thermal uses heat-sensitive media and no ribbon. It is convenient for temporary receiving, staging and short-life labels, but it can fade or darken with heat, sunlight, abrasion and age. Thermal transfer uses a ribbon to place a more durable image on the label. It is generally the safer choice for permanent rack, shelf, bin and pallet-position labels.

Shop barcode labels and thermal-transfer ribbons, or read Barcode Labels 101 and Thermal Transfer Ribbons 101.

Hardware for a warehouse location-labeling system

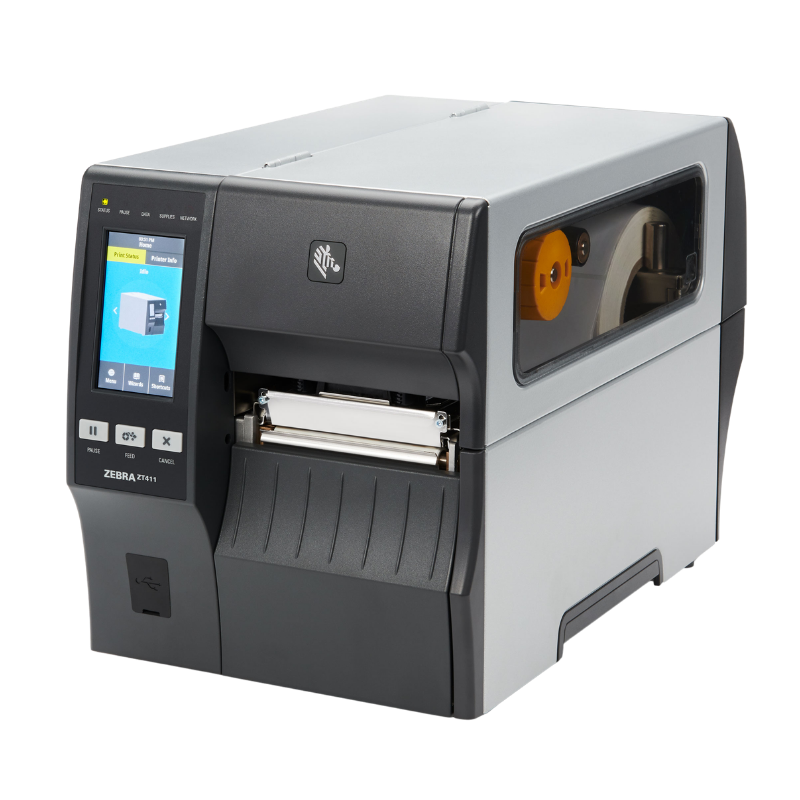

Zebra ZT411 industrial barcode label printer

Zebra ZT411 industrial printer

A strong fit for higher-volume, 4-inch thermal-transfer rack, bin, pallet and compliance labels. Available in multiple resolutions; confirm the exact configuration.

Compare Zebra industrial printers

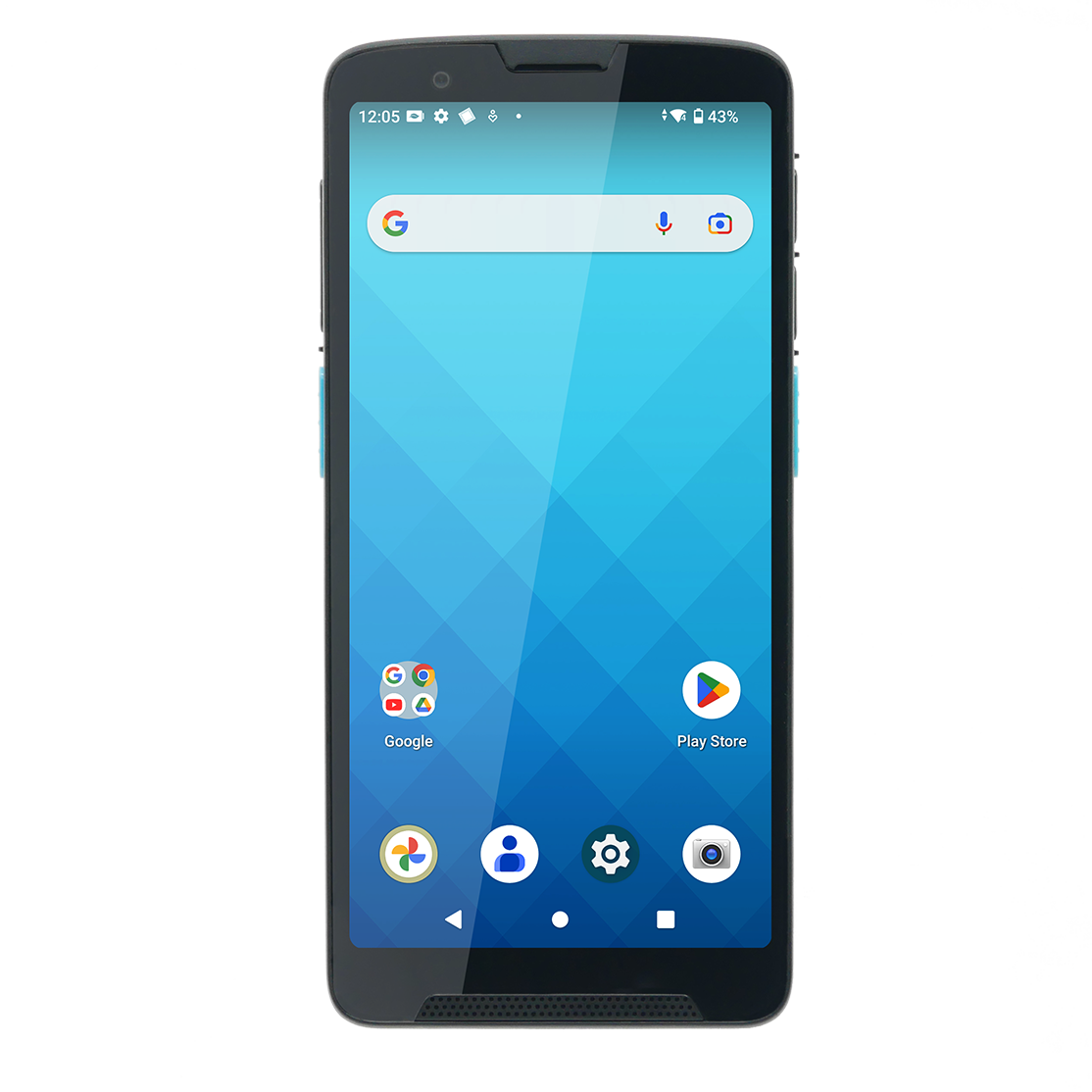

Unitech EA660 rugged Android mobile computer with integrated scanner

Unitech EA660 mobile computer

A rugged Android mobile computer for workers who need to view WMS tasks, scan items and locations, enter quantities and handle exceptions while moving.

Shop mobile computers
Wasp WLR8950 long-range corded 1D barcode scanner

Wasp WLR8950 long-range scanner

A budget-friendly corded 1D option for compatible workstation or inventory workflows. It does not read QR codes or other 2D symbols.

Compare warehouse scanners

Also review desktop label printers for small stockrooms, mobile label printers for point-of-activity replacements, barcode scanners for fixed stations, and mobile computers for WMS-directed work.

Exact products

The location-labeling hardware set, as specific part numbers

Permanent rack and bin labels call for thermal transfer printing on a durable synthetic with a matching ribbon, then a scanner or mobile computer that reads them at the real distance. These are the stocked products that fit each role.

Print the labels

BESTIndustrial, high volume

Zebra ZT411 industrial, 4 in., thermal transfer, 203 dpi (ZT41142-T010000Z)

Part number ZT41142-T010000Z

Best for
Labeling a whole facility, or continuous rack, pallet and compliance labels.
Why choose it
Industrial duty cycle, 8 in. media rolls and 450 m ribbon mean far fewer changes than a desktop printer.
Important limitation
Overkill for a small stockroom; see the ZT231 or a desktop printer.
Connectivity
USB, Serial, Ethernet, Bluetooth (per listing)
Business type
Distribution, manufacturing, 3PL
$1,718.43 View product
BETTERIndustrial, entry level

Zebra ZT231 industrial, 4 in.

Part number ZT23142-T31000FZ

Best for
A mid-size warehouse that prints location labels in batches.
Why choose it
Industrial media capacity at a lower price than the ZT411; direct thermal and thermal transfer configurations are listed.
Important limitation
Choose a thermal transfer configuration for permanent labels.
Connectivity
USB, Serial, Ethernet, Bluetooth LE (per listing)
Business type
Warehouse, fulfillment
$1,599.00 View product
GOODDesktop thermal transfer

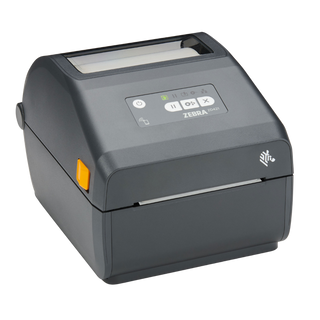

Zebra ZD421t desktop, 203 dpi, USB (ZD4A042-301M00EZ)

Part number ZD4A042-301M00EZ

Best for
Small stockrooms and low-volume location labeling.
Why choose it
Thermal transfer in a desktop footprint; takes 1 in. core, 5 in. OD rolls and 74 m ribbon.
Important limitation
Small rolls and a desktop duty cycle; slow for labeling hundreds of locations.
Connectivity
USB, USB host, Bluetooth LE
Business type
Small warehouse, retail backroom
$584.88 View product

Durable media and ribbon

Polyester 4 x 2, desktop format

Zebra Z-Ultimate 3000T polyester, 4 x 2, 1 in. core, 5 in. OD

Part number 18950

Best for
Permanent rack, shelf and bin labels from a desktop thermal transfer printer.
Why choose it
Polyester resists abrasion, moisture and handling far better than paper.
Important limitation
Thermal transfer only. Zebra’s Z-Ultimate 3000T spec sheet lists the 4800, 5095 and 5100 resin ribbons as the recommended ribbons.
$108.70 View product
Resin ribbon, 4.3 in. x 244 ft, 0.5 in. core

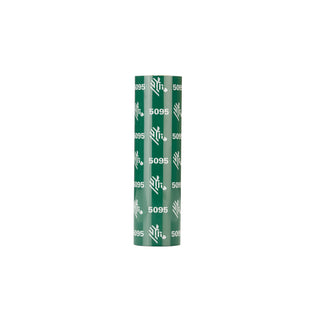

Zebra 5095 resin ribbon, 12 rolls

Part number 05095GS11007

Best for
Polyester labels on a desktop thermal transfer printer (74 m roll ribbon models).
Why choose it
Resin gives the most durable print on synthetic labels.
Important limitation
Not for industrial printers (1 in. core, 450 m) or ribbon-cartridge desktop models.
$169.99 View product

Scan the labels

Extended range, cordless

Zebra DS3678-XR extended-range cordless kit with cradle

Part number DS3678-XR3U4602FVW

Best for
Reading rack and pallet labels from the floor and item labels up close with one scanner.
Important limitation
Range depends on barcode size and print quality; test with your real labels.
Connectivity
Bluetooth to cradle, cradle USB to host
$1,231.22 View product

Which hardware should you choose?

Need Best starting point Key questions
Permanent labels in volume Industrial thermal-transfer printer Print width, DPI, daily volume, roll capacity, connectivity and ribbon/media compatibility
Small stockroom or low volume Desktop label printer Maximum label size, duty cycle, thermal-transfer support and media capacity
Replace labels at the rack Mobile label printer Software, wireless connection, battery life, label width and environmental rating
Scan while viewing WMS tasks Rugged mobile computer Android support, scan engine, Wi-Fi, keyboard/touch input, drops, battery and accessories
Scan at a packing or receiving station Handheld scanner 1D/2D, corded/wireless, scan range, stand, interface and software support

10-step warehouse labeling project plan

  1. Map the facility. Include receiving, reserve storage, forward pick, packing, shipping, returns, quarantine, overflow, freezer and outdoor areas.
  2. Define the hierarchy. Decide which parts of the code represent site, zone, aisle, bay, level, shelf, bin or pallet position.
  3. Confirm the software rules. Validate allowed characters, lengths, sorting, barcode type and import method with the WMS or inventory platform.
  4. Measure surfaces and scan distances. Record rack height, viewing angle, available label area and possible obstructions.
  5. Select label media. Match material and adhesive to steel, plastic, painted surfaces, wood, cold temperatures, moisture, chemicals and expected life.
  6. Select printer and ribbon. Confirm print width, DPI, thermal-transfer capability, roll size, connectivity and the exact ribbon/media match.
  7. Select scanners or mobile computers. Test the actual barcode size at the actual distance and angle.
  8. Run a pilot. Print a small set and test receiving, putaway, picking, counting and transfers before full production.
  9. Install and train. Apply labels consistently and train employees to scan both the item and location at each required step.
  10. Maintain the system. Create rules for replacing damaged labels, retiring obsolete locations and controlling new location IDs.

Common warehouse labeling mistakes

  • Printing thousands of labels before confirming the WMS format
  • Using labels too small for the required scan distance
  • Using direct thermal media for permanent locations
  • Ignoring surface material, dust, moisture, cold or chemicals
  • Encoding changing inventory data instead of a stable location ID
  • Creating confusing codes that employees cannot follow
  • Skipping staging, returns, quarantine and overflow locations
  • Placing barcodes where pallets or rack beams block them
  • Failing to test real scanners with real labels
  • Having no process to replace damaged or obsolete labels

Related warehouse guides

Warehouse Management System Guide

Understand the software workflows that location labels support.

Receiving & Putaway Hardware

Plan scanners, mobile computers, labels and receiving stations.

Picking, Packing & Shipping

Connect location scanning to the outbound workflow.

Cycle Counting Hardware

Count inventory accurately by scannable warehouse location.

Cold Storage Barcode Hardware

Choose media and devices for freezers, coolers and condensation.

Manufacturing Barcode Hardware

Label raw materials, WIP, QC holds and finished-goods locations.

Build your kit

A complete rack-labeling kit has four parts

  • Printer: thermal transfer, desktop for a stockroom or industrial for a facility (above).
  • Labels: polyester for permanent locations, sized for the scan distance; paper or direct thermal only for staging and temporary areas.
  • Ribbon: resin for polyester, in the roll format your printer takes (0.5 in. core / 74 m desktop, 1 in. core / 450 m industrial).
  • Scanner or mobile computer: extended range for high racks, standard range for bins and benches.

Compatibility depends on configuration: before a facility-wide order, send us your WMS name, location format, label size, surface and scan distance. We will confirm the printer, media, ribbon and scanner match and quote the set together.

Get a labeling kit quote Compare warehouse scanners Zebra label size guide

Frequently asked questions

What are warehouse location labels?

They are human-readable and scannable labels that identify physical storage or workflow locations such as zones, aisles, racks, shelves, bins, pallet positions, staging lanes, docks, freezers and stockrooms.

What information should a warehouse location label contain?

Usually a plain-text location code and a barcode encoding that same stable ID. Optional elements include a site name, zone color or directional cue. The exact format should match the WMS or inventory system.

What barcode is best for warehouse locations?

Code 128 is a common 1D choice because it is compact and widely supported. QR Code or Data Matrix can work where space is limited or software requires 2D. Choose based on the WMS, label size, scan distance and scanner capability.

Should rack and bin labels use direct thermal or thermal transfer?

Thermal transfer is usually better for permanent rack, shelf, bin and pallet-position labels because it supports more durable media and print. Direct thermal is often better suited to temporary, short-life labels.

How large should a warehouse barcode label be?

There is no universal size. The barcode must be tested at the real mounting height, distance and angle with the actual scanner. High racks usually require larger labels and may require long-range scanning or retroreflective material.

Can warehouse labels work in a freezer?

Yes, when the label material, adhesive and ribbon are rated for the actual surface, application temperature, service temperature, moisture and condensation. Applying a label to a cold surface can require a different adhesive than labeling at room temperature before freezing.

Do I need a mobile computer or a barcode scanner?

Use a mobile computer when workers need to see WMS tasks, enter quantities and handle exceptions while moving. A handheld scanner may be enough at a receiving desk, packing station or fixed workstation.

Can Spartan POS confirm compatibility with my software?

Spartan POS can help select printers, scanners, mobile computers, labels, ribbons and accessories. Final software compatibility and location-format requirements should also be confirmed with the WMS, ERP or inventory-software provider.

Build a warehouse labeling system that works together

Send Spartan POS your software name, location format, label dimensions, surface, temperature, expected print volume and scan distance. We can help narrow the printer, label, ribbon and scanning hardware choices before you order.

Contact a Spartan POS specialist Call 1-888-895-4767
