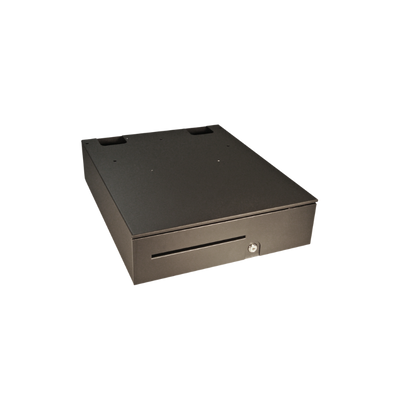

APG Series 100 Cash Drawer, 16" x 19.5", Adjustable Media Slot, MultiPRO 24V Interface, Black (T320-BL16195)
APG Series 100 Cash Drawer, 16" x 19.5", Adjustable Media Slot, MultiPRO 24V Interface, Black (T320-BL16195)
Compatible with:
T320-BL16195
Couldn't load pickup availability
Free Shipping Over $500
Fully Secure Checkout
Shop with confidence
Customer Support
Need help choosing the right configuration?
Talk with a Spartan POS hardware specialist about compatibility, accessories, quantities, or deployment requirements.
Product Description
The APG Series 100 cash drawer T320-BL16195 is a heavy-duty black drawer in the deeper 16" x 19.5" size, with an adjustable media slot, a fixed 5-bill/5-coin till and APG's MultiPRO 320 interface for 24V printer-driven operation. APG designs Series 100 cash drawers around a full-size till with a narrow footprint to save counter space.
Key features
- Deep under-till compartment for coin rolls and packaged currency
- Adjustable media slot divider separates different media types
- Industrial-grade steel ball bearing slides and heavy-duty latch mechanism
- Tested beyond 4 million transactions
- Four-function lock and closed-and-latched drawer status switch
- Rear cable storage area with removable back panel
Specifications
| Part number | T320-BL16195 |
|---|---|
| Color | Black |
| Dimensions (W x D x H) | 16.0 x 19.5 x 4.9 in. (406 x 495 x 125 mm); 4.6 in. (117 mm) high without feet |
| Shipping weight | 30 lb (13.6 kg) |
| Drawer front | Adjustable media slot |
| Till | Fixed, 5 bill / 5 coin |
| Interface | MultiPRO 320, 24V |
| Interface cable | Not included |
| Keying | Random keying from 10 lock codes is standard |
| Operating temperature | 0 to 40 °C (32 to 104 °F) |
Frequently asked questions
Is the interface cable included with the T320-BL16195?
No. APG's 320 MultiPRO 24V interface requires a detachable cable sold separately. APG also offers a 320-1 interface option that includes the CD-101A cable.
Which printers and terminals can open this drawer?
APG's Connectivity Guide pairs the 320 interface with the CD-101A cable for Epson TM Series and Star HSP, SCP, SP and TSP Series printers and for Clover Mini, Station and Station Pro. Certain Cognitive TPG, HP and Fujitsu printers use the CD-102A cable instead.
How does the 16195 size compare with the Series 100 1616?
Both are 16.0" wide and 4.9" high. The 16195 is 19.5" deep versus 16.8" for the 1616, with a shipping weight of 30 lb versus 23 lb.
Is the Series 100 suited to high-volume checkouts?
Yes. APG classifies Series 100 cash drawers as heavy duty for high transaction volumes such as fast food and grocery.
