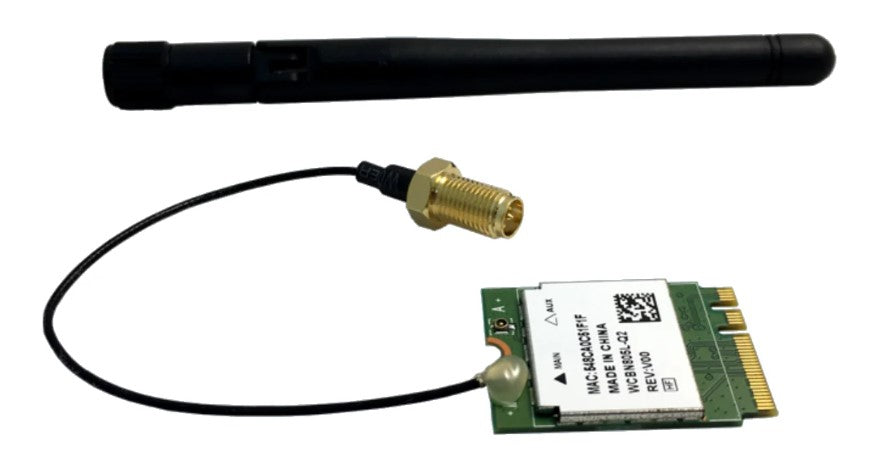

Brightsign Dual Antenna Wifi Module WD-104 (WS104)

Brightsign, Dual Antenna Wifi Module, WD-104 is a professional POS hardware component.

The WD104 runs on all Series 2, 3, and 4 XT/XD players. The minimum BrightSignOS version is 8.4.10

Wireless

• 2x2 802.11ac protocols: A, B, G, N, AC

• Frequency bands: 2.4GHz, 5GHz

• Tx power:

  • 2.4 GHz band: 18 dBm at 20 MHz channel width; 16 dBm at 40 MHz channel width

  • 5 GHz band: 15 dBm at 20 MHz channel width; 13 dBm at 40 MHz channel width; 10 dBm at 80 MHz channel width; 8 dBm at 160 MHz channel width

• Security: 128-bit AES-CCMP, 128-bit and 256-bit AES-GCMP
