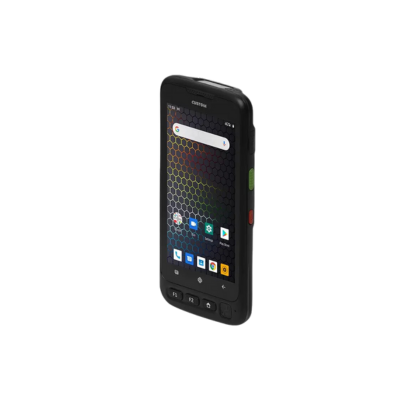

Custom America P-RANGER 5" Rugged Android 10 Mobile Computer (93DKZ010100L33)

The Custom America P-RANGER (part number 93DKZ010100L33) is a rugged 5-inch Android handheld computer with a built-in SE4710 1D/2D barcode scanner. Custom's datasheet identifies this part number as the RP310 A10 model, which runs Android 10 on an MT6762 octa-core processor with 4 GB/64 GB memory and has two nano SIM slots with 4G LTE data.

Key features

• SE4710 1D/2D scan engine for linear, 2D and postal barcodes.
• 5 in. HD touchscreen (1280 x 720) with Dragontrail/AGC glass.
• Android 10 on an MT6762 octa-core (2.0 GHz) processor with 4 GB/64 GB memory and a microSD slot for cards up to 32 GB.
• Connectivity: two nano SIM slots (2G/3G/4G on the first, 2G/3G on the second), dual-band 2.4/5 GHz Wi-Fi (802.11a/b/g/n), Bluetooth 4.0 and NFC.
• 4,000 mAh battery, with an optional 8,000 mAh battery and dedicated battery cover.
• Rugged: IP67, 122 cm (4 ft) drop resistance and MIL-STD-810G certification.
• 8 MP rear camera and a USB Type-C port.

Specifications

What's in the box

• P-RANGER terminal
• 4,000 mAh battery
• Hand strap
• User manual
• Warranty card

Typical applications

• Handheld 1D/2D barcode capture with the integrated SE4710 engine
• Data connectivity away from Wi-Fi over 4G LTE
• Work in wet or dusty conditions within the IP67 rating

How it compares

Custom sells the P-RANGER in three part numbers with the same 5 in. display, SE4710 scanner, 4,000 mAh battery and IP67 rating. 93DKZ013700L33 is the RP310 A9 (Android 9, 2 GB/16 GB, Bluetooth 4.0). 93DKZ010100L33, this model, is the RP310 A10 (Android 10, 4 GB/64 GB, Bluetooth 4.0). 93DKZ014200L33 is the RP310 A12 (Android 12, MT6765 2.3 GHz processor, 4 GB/64 GB, Bluetooth 5.0). Custom also offers the K-RANGER, a mobile computer with a keypad and 4G.

Frequently asked questions

Which Android version does the P-RANGER 93DKZ010100L33 run?

Android 10. Custom lists this part number as the RP310 A10 model. The Android 9 version is part number 93DKZ013700L33, and the Android 12 version is 93DKZ014200L33.

Does the P-RANGER have a built-in barcode scanner?

Yes. It uses the SE4710 1D/2D scan engine, which Custom lists as reading UPC/EAN, Code 128, GS1-128, Code 39, Code 93, PDF417, MicroPDF417, Data Matrix, QR, Micro QR, Aztec, MaxiCode and several postal codes, among others.

Does it support cellular data?

Yes. The P-RANGER has two nano SIM slots, with 2G/3G/4G on the first and 2G/3G on the second. Custom lists LTE FDD bands 1, 2, 3, 4, 5, 7, 8, 12, 13, 17, 18, 19, 20, 25, 26 and 28 plus TDD bands 34, 38, 39, 40 and 41. Check that your carrier uses these bands before ordering.

How rugged is the P-RANGER?

Custom rates it IP67, with 122 cm (4 ft) drop resistance and MIL-STD-810G certification. The operating temperature range is -10 °C to 40 °C (14 °F to 104 °F).

Is a larger battery available?

Yes. The P-RANGER ships with a 4,000 mAh battery, and Custom lists an 8,000 mAh battery with a dedicated battery cover as an optional accessory.
