• Elo 1002L 10-inch touchscreen monitor

Elo

Elo 1002L 10.1" Touchscreen Monitor, PCAP 10-Touch, USB-C, No Stand (E155834)

Elo 1002L 10.1" Touchscreen Monitor, PCAP 10-Touch, USB-C, No Stand (E155834)

Compatible with:

E155834

$484.18 USD
$484.18 USD
Shipping calculated at checkout.
  • Free Shipping Over $500
  • Fully Secure Checkout

Shop with confidence

Commercial Hardware Specialists
Secure Checkout
Compatibility Support
Business & Volume Purchasing

Customer Support

Need help choosing the right configuration?

Talk with a Spartan POS hardware specialist about compatibility, accessories, quantities, or deployment requirements.

888-895-4767 info@spartanpos.com

Product Description

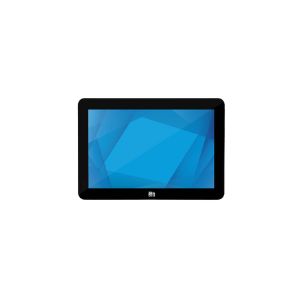

The Elo 1002L (Elo model ET1002L) is a 10.1-inch touchscreen monitor in Elo's 02-Series, and part number E155834 is the touch version, with 10-touch projected capacitive (PCAP) touch and anti-glare glass. A single USB Type-C cable can carry touch, video and power from a compatible source, and HDMI and VGA inputs are also available. It can serve as a compact POS display or a customer-facing screen, and it ships without a stand.

Key features

  • 10.1-inch LED LCD with 1280 x 800 resolution and a 16:10 aspect ratio
  • 10-touch PCAP with anti-glare glass; Elo lists finger, glove and stylus use
  • USB Type-C input for touch, video (DisplayPort Alt Mode) and power
  • HDMI and VGA video inputs
  • Three micro-USB ports (top, left and right) for Elo Edge Connect peripherals
  • Two 2 W internal speakers
  • 75 mm VESA mounting interface in a 1.14-inch-deep, 1.95 lb housing

Specifications

Elo part number E155834 (ET1002L-2UWC-1-G): PCAP touch, anti-glare, USB, black, no stand
Display 10.1" diagonal active matrix TFT LCD (LED), 16:10
Resolution 1280 x 800
Brightness (typical) 350 nits LCD panel; 315 nits with PCAP on DC power; 200 nits with PCAP on 5V USB-C power
Contrast ratio 800:1
Response time 29 ms
Viewing angle ±85° (170° total) horizontal and vertical
Touch PCAP, 10 touches, USB interface
I/O ports USB Type-C, HDMI, VGA (micro connector), audio line-in, 12V DC input, 3 x micro-USB
Speakers 2 x 2 W internal
Power USB Type-C power input or included 12V/36W DC adapter; 7.43 W typical
Mounting VESA 75 mm, 4-hole
Dimensions 10.03" x 6.99" x 1.14" (without stand)
Weight 1.95 lb (0.88 kg)
Operating temperature 0 to 40°C
Ingress and impact protection IPX1 (front), IK05

What's in the box

Elo lists the touchmonitor, HDMI cable, USB Type-A to Type-C cable, quick install guide, power brick, North America and EU power cables, two cable clamps, two tie wraps and screws for the clamps and cable doors. A stand, the VGA-DB15-to-micro cable (E710549) and a USB Type-C to Type-C cable (E710364) are sold separately.

Typical applications

  • Compact point-of-sale display
  • Customer-facing display for reviewing transactions, loyalty programs or promotions
  • Self-service and signage
  • Hospitality applications

Compatibility

Elo's user manual states that no additional drivers are required with Windows 7, Windows 10 and most versions of Mac OS X, Android and Linux, which use built-in HID drivers and detect 10 simultaneous touches without calibration. Elo Edge Connect options for the 1002L include a magnetic stripe reader (E001002), 2D barcode scanners (SE2707, E393160; SE4720, E384627; SE4107, E245047) and EMV cradles for the MagTek eDynamo (E375343) and Ingenico RP457c (E586981, E710930).

How it compares

Elo offers the 1002L as E155834 with PCAP touch and as E324341 without touch. Both have anti-glare glass and ship without a stand.

Frequently asked questions

Does the Elo 1002L E155834 come with a stand?

No. Elo lists E155834 without a stand. Elo mounting options include a short tabletop stand (E160104), the Wallaby POS stand (E949536), a wall mount kit (E143088) and 6-, 12- and 18-inch pole mounts.

Can the 1002L run from a single USB-C cable?

Yes, when the computer's USB Type-C port supplies video and power. Elo recommends its USB Type-C to Type-C cable (E710364), sold separately; the included USB-A to USB-C cable carries USB 2.0 touch data only. On 5V-only USB-C power, the monitor reduces brightness to 60 percent, disables the speakers and supports one peripheral port.

Does the Elo 1002L need a touch driver?

According to Elo's user manual, no additional driver is required for Windows 7, Windows 10 and most versions of Mac OS X, Android and Linux, and no calibration is needed.

What is the native resolution of the 1002L?

The native resolution is 1280 x 800 (16:10). Elo lists support for input resolutions up to 1920 x 1200 at 60 Hz.

See more Elo hardware and POS hardware.
