Elo

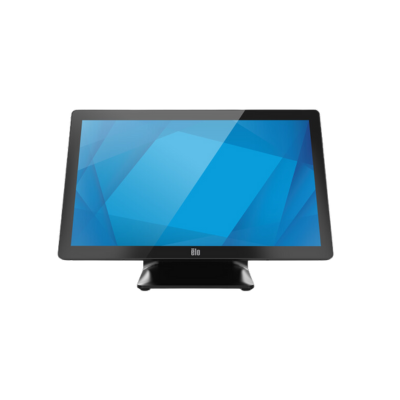

Elo I-Series 3 21.5" Touchscreen Computer, Intel Core i3, 8GB RAM, 128GB SSD, Windows 10, with Stand (E707378)
Elo I-Series 3 21.5" Touchscreen Computer, Intel Core i3, 8GB RAM, 128GB SSD, Windows 10, with Stand (E707378)
Compatible with:
E707378
Couldn't load pickup availability
Free Shipping Over $500
Fully Secure Checkout
Shop with confidence
Customer Support
Need help choosing the right configuration?
Talk with a Spartan POS hardware specialist about compatibility, accessories, quantities, or deployment requirements.
Product Description
The Elo I-Series 3 with Intel, part number E707378, is a 21.5-inch all-in-one touchscreen computer for point-of-sale, self-service and interactive display use. Elo's part description lists this configuration with an Intel Core i3 processor, 8GB RAM, a 128GB SSD, Windows 10, 10-touch projected capacitive touch with anti-glare glass, and a stand. Elo sells this screen size as its 22-inch I-Series 3 with Intel.
Key features
- 21.5-inch Full HD (1920 x 1080) IPS display with TouchPro PCAP 10-touch and edge-to-edge, zero-bezel glass
- Intel Core i3-1215UL processor, 8GB DDR5 memory (expandable to 64GB) and a 128GB M.2 NVMe SSD
- Windows 10 operating system
- Fanless design with an IP54 rating
- Stand ports for POS peripherals: 24V powered USB, two 12V powered USB and a 12V/24V cash drawer port
- Four micro-USB Elo Edge Connect ports for peripherals such as a card reader, 2D barcode scanner or EMV cradle
- Gigabit Ethernet, Wi-Fi, Bluetooth 5.2 and TPM 2.0
Specifications
| Elo part number | E707378 |
|---|---|
| Display | 21.5" diagonal LED LCD, 1920 x 1080 at 60 Hz, 16:9 |
| Brightness (typical) | 250 nits LCD panel; 212.5 nits with TouchPro PCAP |
| Touch | TouchPro projected capacitive (PCAP), 10 touches, anti-glare glass |
| Processor | Intel Core i3-1215UL (10M cache, up to 4.40 GHz) |
| Memory | 8GB DDR5-4800 SO-DIMM in 1 of 2 slots (64GB maximum) |
| Storage | 128GB M.2 PCIe NVMe SSD |
| Operating system | Windows 10 |
| Networking | Gigabit Ethernet (RJ45), Wi-Fi, Bluetooth 5.2 |
| I/O ports (with stand) | RJ45 LAN, 4 x USB 3.0, 4 x micro-USB (Edge Connect), 24V powered USB, 2 x 12V powered USB, RJ50 powered serial, 12V/24V cash drawer, USB-C (USB 3.0, DisplayPort, up to 27 W), 3.5 mm headset jack |
| Speakers | 2 x 2 W |
| Security | TPM 2.0, Kensington lock |
| Ingress protection | IP54, fanless |
| Mounting | 100 mm VESA |
| Power | External 24 VDC, 180 W power supply (100-240 VAC input) |
| Dimensions with stand | 20.70" x 14.52" x 8.06" |
| Operating temperature | 0 to 35°C |
Typical applications
- Point-of-sale terminals
- Self-service stations
- Interactive signage
- Automation controls
Compatibility
Elo lists Edge Connect peripherals for the I-Series 3 with Intel, including a magnetic stripe reader (E001002), 2D barcode scanners (SE4720, E384627; SE4107, E245047), EMV cradles for the MagTek eDynamo (E375343) and Ingenico RP457c (E586981, E710930) and a 2x20 VFD customer display (E001003). Elo also lists a wall mount kit (E143088) and the Wallaby Pro countertop stand (E989127) among its stands and mounts.
How it compares
Elo builds the I-Series 3 with Intel with Celeron, Core i3, i5 or i7 processors, with or without a stand, in screen sizes from 15 to 24 inches. E707378 is the Core i3, 8GB RAM, 128GB SSD, Windows 10 configuration with a stand. Models without a stand omit the powered USB and cash drawer ports, and i5 and i7 models add Intel vPro support.
Frequently asked questions
What screen size is Elo E707378?
E707378 has a 21.5-inch diagonal Full HD touchscreen. Elo's part description calls it the 21.5-inch I-Series 3 with Intel, and Elo's product page groups this size as the 22-inch I-Series 3 with Intel.
Is a stand included with the Elo I-Series 3 E707378?
Yes. E707378 is a with-stand model. On the I-Series 3 with Intel, stand models add a 24V powered USB port, two 12V powered USB ports and a 12V/24V cash drawer port.
Is the Elo I-Series 3 a tablet?
No. It is a fixed all-in-one touchscreen computer that runs from an external 24 VDC power supply and sits on its stand or mounts to a 100 mm VESA mount.
Can it connect to a cash drawer, barcode scanner or card reader?
Yes. The stand provides a 12V/24V cash drawer port (Epson pinout, 24V default), powered USB ports and an RJ50 powered serial port, and Elo's Edge Connect scanners, card reader and EMV cradles attach to the micro-USB ports on the edge of the display.
