Datalogic Gryphon GBT4500 Bluetooth 2D Barcode Scanner Kit with Wireless Charging Base, Black (GBT4500-BK-BTK1)
Datalogic Gryphon GBT4500 Bluetooth 2D Barcode Scanner Kit with Wireless Charging Base, Black (GBT4500-BK-BTK1)
Compatible with:
GBT4500-BK-BTK1
Couldn't load pickup availability
Free Shipping Over $500
Fully Secure Checkout
Shop with confidence
Customer Support
Need help choosing the right configuration?
Talk with a Spartan POS hardware specialist about compatibility, accessories, quantities, or deployment requirements.
Product Description

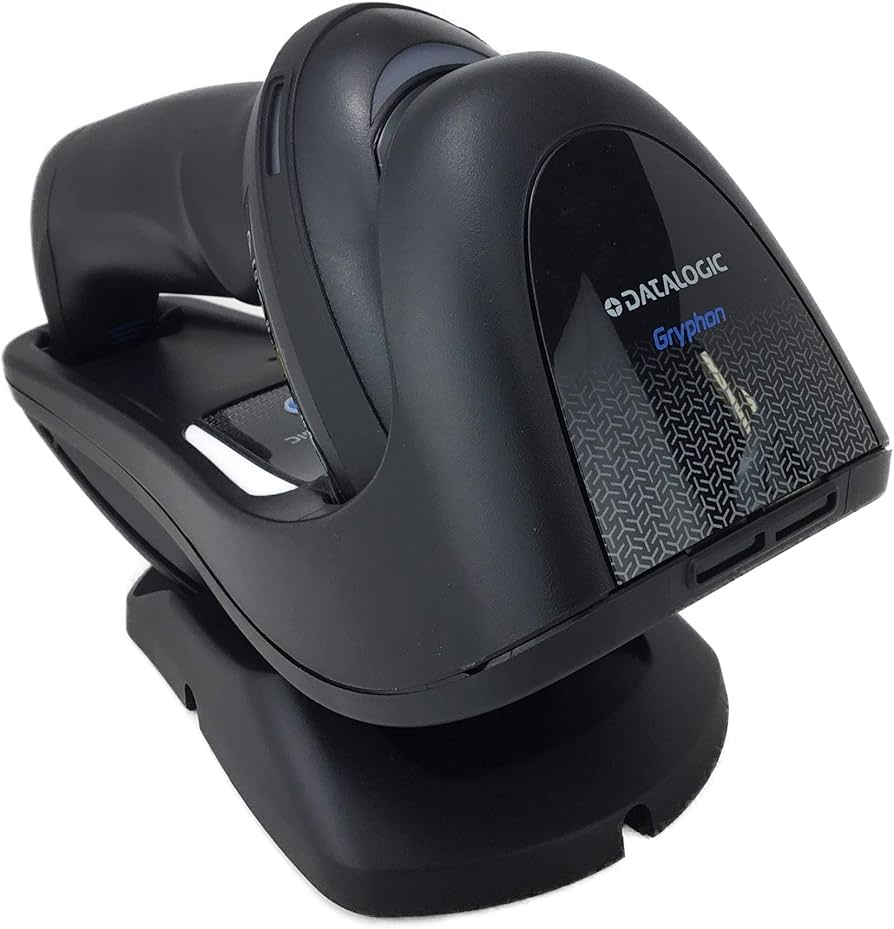

The Datalogic Gryphon GBT4500-BK-BTK1 is a cordless Bluetooth 2D barcode scanner kit in black. Datalogic defines this kit as the Gryphon GBT4500 scanner, a WLC4090-BK-BT wireless charging base station and a 2 m USB cable. Datalogic positions the Gryphon 4500 series as its premium handheld range, used in retail, healthcare, light manufacturing and commercial services.
Key features
- 1 MP 2D imager: reads 1D, 2D, postal, stacked and composite codes in any orientation, including codes on mobile device screens.
- Contactless charging: the battery charges inductively in the WLC4090 base, with no charging contacts to clean.
- Two-position cradle: horizontal or presentation mounting with scanning while charging; in the stand the scanner switches to autosense reading.
- Feedback and aiming: Datalogic Green Spot on the code, Three Green Lights, beeper, 4-dot aimer and Motionix motion sensing.
- Durability: IP52 sealing and repeated 1.8 m (6 ft) drops onto concrete.
Specifications
| Manufacturer part number | GBT4500-BK-BTK1 |
|---|---|
| Wireless | Bluetooth; HID and SPP profiles |
| Radio range | 100 m (328 ft) open air, measured with the base station |
| Base station | WLC4090-BK-BT wireless charging base, USB/RS-232 |
| Image sensor | 1 megapixel, 1280 x 800 pixels |
| Typical reading range (standard range) | EAN/UPC 13 mil: 1.0 to 71.0 cm (0.4 to 27.9 in); QR Code 10 mil: 5.5 to 24.0 cm (2.2 to 9.5 in) |
| Battery | Li-ion, 3250 mAh; up to 80,000 reads per charge |
| Charge time | 4 hours with 12 VDC external power |
| Sealing and drops | IP52; repeated 1.8 m (6 ft) drops onto concrete |
| Operating temperature | 0 to 50 °C (32 to 122 °F) |
| Scanner weight | 235 g (8.29 oz) with battery |
What's in the box
- Gryphon GBT4500 Bluetooth 2D scanner, black
- WLC4090-BK-BT wireless charging base station, black
- USB cable 90A052258 (Type A, straight, 2 m)
Datalogic does not list a power supply in this kit; 12 V adapters such as 8-0935 are sold separately.
Typical applications
- Retail point-of-sale checkout
- Light manufacturing work-in-progress and order processing
- Post offices, banks, public administration and utilities
- Access control and ticketing
Compatibility
The WLC4090 base connects over USB or RS-232. Selectable interface types include USB keyboard, USB COM, USB HID POS, USB Toshiba TEC, USB Composite, RS-232 and IBM 46XX (specific cable required), with OPOS/UPOS/JavaPOS options. Datalogic Aladdin configuration software and OPOS/JavaPOS utilities are free to download.
How it compares
- GBT4500-BK-BTK1DRA: Disinfectant Ready Antimicrobial version of this kit.
- GBT4500-HC-BTK1: healthcare version with WLC4090-HC-BT base and white cable.
- Gryphon GM4500: STAR Cordless System radio (433 or 910 MHz) instead of Bluetooth, 50 m (164 ft) range.
- QuickScan QBT2500: Datalogic's entry-level cordless 2D scanner, 50 m (164 ft) Bluetooth range.
Frequently asked questions
Does the Datalogic Gryphon GBT4500 read 2D barcodes and phone screens?
Yes. Its 1 MP imager reads 1D, 2D, postal and stacked codes, and Datalogic cites strong performance on barcodes shown on mobile devices, such as mobile tickets.
What is included in the GBT4500-BK-BTK1 kit?
The Gryphon GBT4500 scanner, the WLC4090-BK-BT wireless charging base and the 2 m 90A052258 USB cable. No power supply is listed.
How far can the scanner be from its base?
Up to 100 m (328 ft) in open air, measured with the base station. Up to 7 readers can connect to one radio receiver.
How long does the battery last per charge?
The 3250 mAh battery is rated for up to 80,000 reads per charge and recharges in 4 hours with 12 VDC external power.
Can the GBT4500 connect to a PC or tablet without the base?
Yes. Datalogic's quick reference guide describes pairing directly with a Bluetooth host in HID mode, where scans appear as keyboard input, or in SPP serial mode.
