Product Description

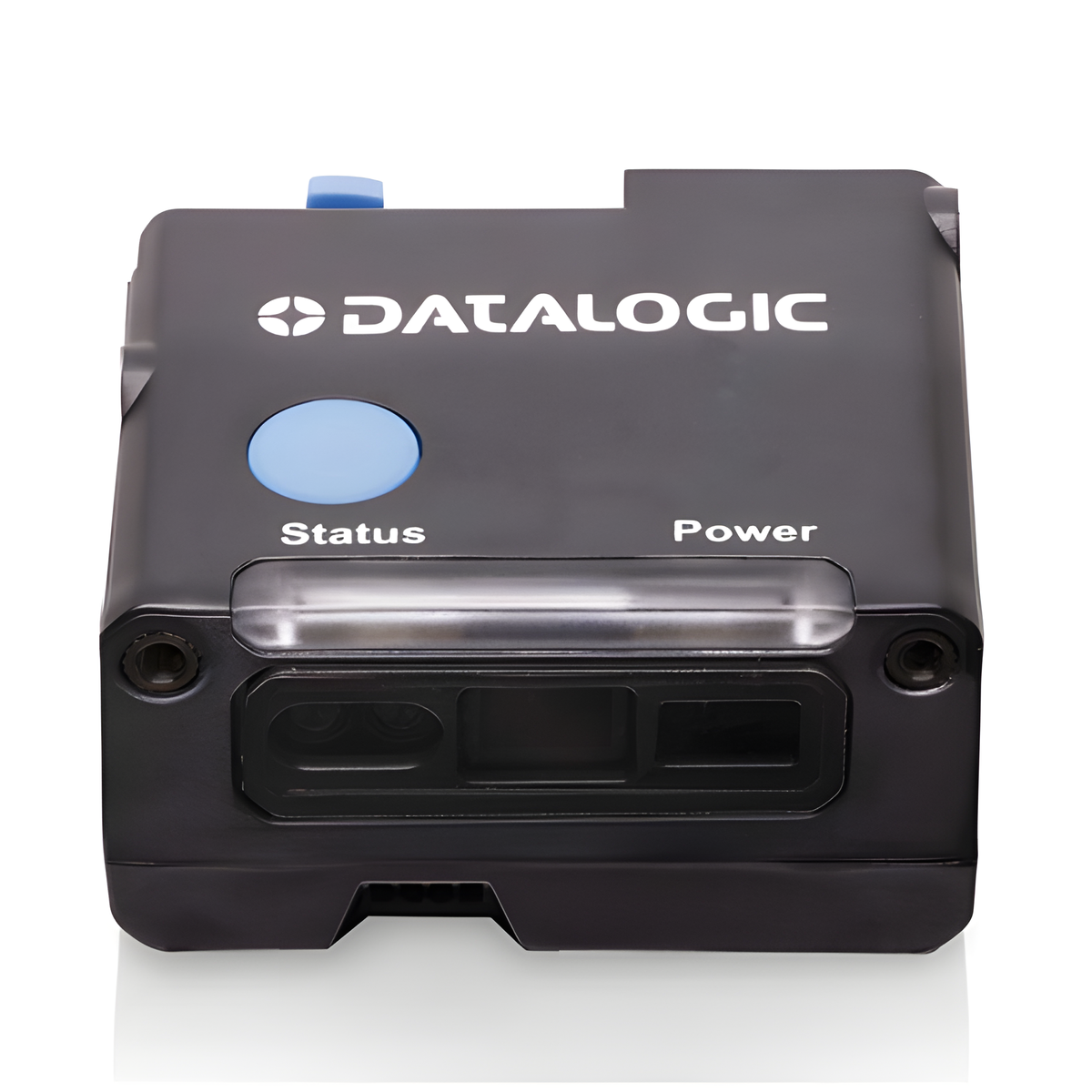

Datalogic Gryphon I GFS4520 Fixed-Mount 2D Barcode Scanner – GFS4520-BK-WHT
The Datalogic Gryphon I GFS4520-BK-WHT is a compact, fixed-mount 1D and 2D barcode scanner designed for kiosks, self-service systems, access-control stations, price verification, automated equipment, embedded POS applications, and other installations where a traditional handheld barcode scanner is not ideal.
This specific configuration features white LED illumination, a 1-megapixel area imager, a USB-only interface, and a micro-USB connector. Its compact enclosure makes it easy to integrate into counters, cabinets, kiosks, equipment housings, and custom scanning stations while retaining the scanning technology of Datalogic's premium Gryphon family.
Important: Cable Is Not Included
GFS4520-BK-WHT is the scanner-only configuration. The USB cable must be ordered separately. If you need the scanner packaged with the factory USB cable, look for Datalogic part GFS4520-BKK1-WHT, which includes USB cable 94A051968.
Quick Answer
Choose the Datalogic GFS4520-BK-WHT when you need a small, professional-grade fixed or embedded 2D barcode scanner with USB connectivity. It can read common 1D barcodes as well as QR codes, Data Matrix, PDF417 and other supported 2D symbologies, making it a strong choice for self-service kiosks, ticketing, digital coupons, mobile-device barcodes, check-in systems, access control and embedded POS applications.
Key Features
- Exact manufacturer part number: GFS4520-BK-WHT
- Scanner family: Datalogic Gryphon 4500 Fixed Series
- Scanner type: Fixed-mount / embedded area imager
- Barcode capability: 1D and 2D
- Image sensor: 1 megapixel, 1280 × 800 pixels
- Illumination: Warm white LED
- Aiming: Blue LED aiming system
- Interface: USB only
- Scanner connector: Micro-USB
- Input voltage: 5 VDC ±5%
- Frame rate: Up to 60 full frames per second
- Good-read feedback: Datalogic Green Spot, LED and adjustable beeper
- Environmental sealing: IP54
- Drop resistance: Repeated drops from up to 5 ft / 1.5 m onto concrete
- Color: Black
- Cable: Not included with this SKU
Why Use a Fixed-Mount Gryphon Scanner?
A fixed scanner is useful when the scanner needs to become part of the workstation or equipment instead of being picked up by the operator. The GFS4520 can be positioned behind an opening, mounted into a kiosk, installed at a check-in station, or incorporated into a custom enclosure.
The compact Gryphon GFS4500 platform is especially well suited to applications where space is limited but reliable omnidirectional 2D barcode capture is still required.
Common Applications
- Self-service kiosks
- Self-checkout systems
- Customer check-in stations
- Ticket and admission scanning
- Access-control systems
- Price-verification terminals
- Smart lockers
- Embedded POS equipment
- Mobile coupon and loyalty barcode scanning
- QR-code scanning
- Equipment and machine integration
- Custom OEM scanning applications
Scanning Performance
| Specification | GFS4520-BK-WHT |
|---|---|
| Image sensor | 1 MP, 1280 × 800 pixels |
| Field of view | 51° horizontal × 32° vertical |
| Frame rate | 60 full frames/sec |
| Illumination | Warm white LED |
| Aiming | Blue LED |
| Minimum print contrast | 15% |
| Motion tolerance | Up to 70 IPS on EAN/UPC |
| Reading angles | Pitch ±60°, Roll ±180°, Skew ±60° |
Physical & Environmental Specifications
| Dimensions | Approx. 1.1 × 1.9 × 2.2 in / 2.8 × 4.8 × 5.5 cm |
| Weight | Approx. 1.8 oz / 52 g without cable |
| Ingress protection | IP54 |
| Operating temperature | -4°F to 122°F / -20°C to 50°C |
| Storage temperature | -40°F to 158°F / -40°C to 70°C |
| Ambient light immunity | Up to 120,000 lux |
USB Connection & Compatibility
The GFS4520-BK-WHT is a USB-only scanner. It uses a micro-USB connector on the scanner and requires a compatible USB host connection and cable.
Datalogic's compatible straight 2-meter micro-USB-to-USB cable is 94A051968. Because this exact scanner SKU does not include the cable, verify that you already have the appropriate cable or order it with the scanner.
Scanner compatibility can depend on the operating system, POS software, kiosk application, USB configuration, barcode symbologies, scanner programming and host interface. If you are replacing an existing scanner, compare the complete Datalogic part number rather than relying only on the GFS4520 model name.
What's Included
- Datalogic Gryphon I GFS4520 fixed-mount scanner
- Black housing
- White illumination configuration
Not Included
- USB cable
- Mounting hardware unless specifically shown as included
- External power supply
- POS or kiosk software
GFS4520-BK-WHT vs. Other Gryphon 4500 Fixed Models
| Model | Interface / Configuration | Best When |
|---|---|---|
| GFS4520-BK-WHT | USB, white illumination, scanner only | You already have the required cable or need a custom installation |
| GFS4520-BKK1-WHT | USB, white illumination, cable kit | You need scanner plus factory USB cable |
| GFS4520-BK-RED | USB, red illumination | Application calls for red illumination |
| GFS4550 | RS-232 | Host equipment requires serial connectivity |
| GFS4590 | USB / RS-232 | Greater host-interface flexibility is required |
Explore Datalogic & Barcode Scanning Solutions
Need help deciding whether a fixed Gryphon scanner is right for your application? Spartan POS carries Datalogic scanners for retail, self-service, inventory, warehouse and OEM applications.
- Compare Datalogic Gryphon Barcode Scanners
- Datalogic Barcode Scanners & Mobile Computers
- Shop All Datalogic Products
- Shop Barcode Scanners
- Barcode Scanner Buying Guide
- Barcode Scanning & Barcoding Guide
- Shop POS Hardware
Frequently Asked Questions
Does GFS4520-BK-WHT include a USB cable?
No. GFS4520-BK-WHT is the scanner-only configuration and the cable must be purchased separately. Datalogic's GFS4520-BKK1-WHT kit includes the scanner and USB cable 94A051968.
Is the GFS4520-BK-WHT a 2D barcode scanner?
Yes. The Gryphon GFS4520 uses area-imaging technology and supports both common 1D barcodes and supported 2D barcode formats such as QR Code, Data Matrix and PDF417.
Can the GFS4520 scan QR codes from phones?
The scanner's 2D area-imaging design makes it suitable for many screen-based barcode applications, including QR codes, mobile tickets, loyalty barcodes and digital coupons. Actual performance can depend on screen brightness, barcode size and application configuration.
Is this a handheld barcode scanner?
No. The GFS4520 is designed primarily as a compact fixed-mount or embedded scanner. For a conventional handheld Gryphon scanner, review Datalogic's GD, GBT and GM Gryphon configurations.
Can I use the GFS4520 in a self-service kiosk?
Yes. Kiosks, self-checkout systems, self-check-in terminals, access control, ticketing, price verification and other embedded installations are primary use cases for the Gryphon 4500 Fixed Series.
Does this model support RS-232 serial connections?
No. GFS4520-BK-WHT is USB-only. If your equipment requires RS-232, review the GFS4550 or a compatible GFS4590 configuration instead.
What is the difference between GFS4520-BK-WHT and GFS4520-BKK1-WHT?
The scanner hardware is based on the same white-illumination GFS4520 configuration. GFS4520-BK-WHT is sold without the USB cable, while GFS4520-BKK1-WHT is the kit configuration that includes USB cable 94A051968.
How do I know if this scanner will work with my POS or kiosk?
Confirm the required barcode types, USB interface, operating system, application requirements and scanner configuration. If you are replacing an existing scanner, provide Spartan POS with the exact scanner model and part number so the configuration can be compared before ordering.
