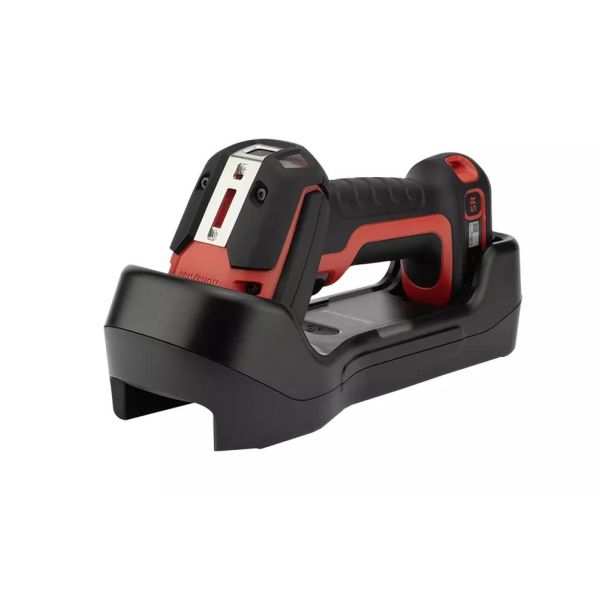

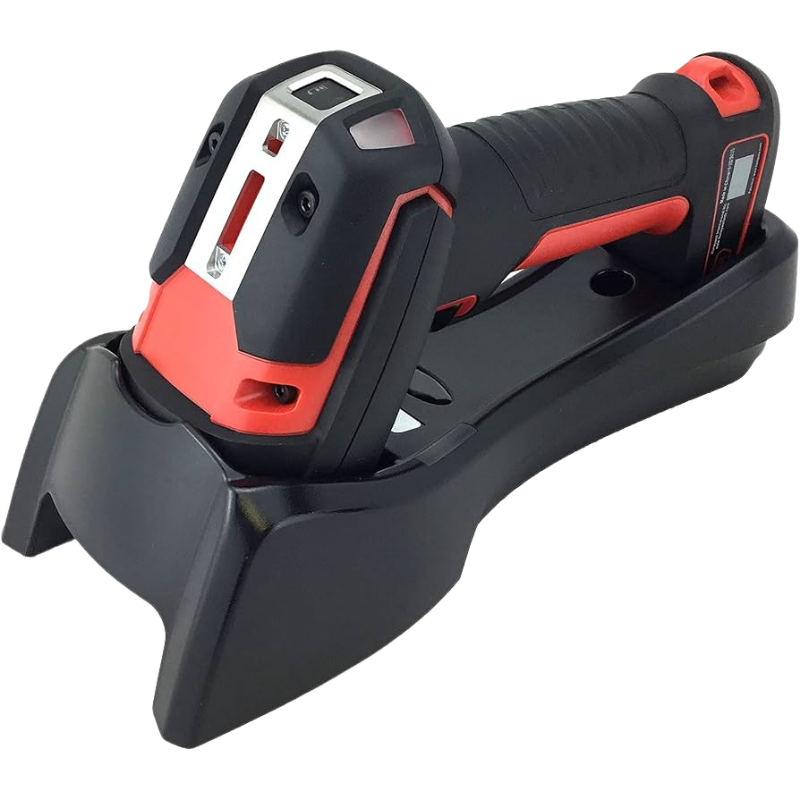

Honeywell Granit Ultra 2105iSR Rugged Bluetooth 2D Barcode Scanner USB Kit, Standard Range (2105ISR-3USB-CLHN)

The Honeywell Granit Ultra 2105iSR (part number 2105ISR-3USB-CLHN) is an ultra-rugged cordless Bluetooth area-imaging scanner kit with standard-range (SR) optics. Honeywell builds Granit Ultra for warehouse, distribution center and manufacturing environments, and the SR model reads barcodes from contact to arm's length. This USB kit includes the scanner, a battery, a charge and communication base and a USB cable.

Key features

• Rugged build: rated for 3 m (10 ft) drops per MIL-STD-810G, 50 drops from 2 m (6.5 ft) between -30 °C and 50 °C, and 7,500 tumbles from 1 m (3.3 ft).
• Sealing: IP65 and IP68 for the scanner; IP65 for the charge and communication base.
• Battery: 3300 mAh Li-ion, rated for up to 100,000 scans per charge or about 14 hours at 2 scans per second.
• Bluetooth range: Class 1 Bluetooth with up to 100 m (330 ft) line of sight to the Honeywell charge and communication base.
• Drop-in charging base: latching mechanisms hold the scanner securely when the base is mounted vertically or on a vehicle.

Specifications

What's in the box

• Granit Ultra 2105iSR scanner (2105ISR-3USB-CL)
• BAT-SCN11 lithium-ion battery
• CCB23-100BT-07N-N Granit Ultra charge and communication base
• CBL-500-300-S00 USB cable: Type A, 3 m (9.8 ft), straight

No power supply is listed. Honeywell's PS-05-3000-W-U (5 VDC, 3.0 A) for the CCB23 base is sold separately.

Typical applications

• Warehouse, distribution center and eCommerce picking, packing, putaway and replenishment
• Manufacturing assembly, picking, packing and stocking
• Transportation and logistics vehicle loading, unloading and sortation

Compatibility

The CCB23 base supports USB, keyboard wedge and RS-232 host cables; only the USB cable is included. Up to 7 scanners can connect to one base. Honeywell management tools include EZConfig, Scanner Management Utility (SMU), SDKs and drivers.

How it compares

• Other 2105i ranges: HD reads codes as small as 2 mil; XR reads UPC/EAN-13 up to nearly 1.8 m (6 ft); XLR reads 100 mil Code 39 up to 30 m (98 ft).
• 2105IXLR-3-CLN: extreme long range model, sold as scanner only.

Frequently asked questions

Is the Granit Ultra 2105iSR built for warehouse use?

Yes. Honeywell designs Granit Ultra for warehouse, distribution center and manufacturing environments and lists picking, packing, putaway and replenishment among its uses.

What is included in the 2105ISR-3USB-CLHN kit?

The Granit Ultra 2105iSR scanner, a BAT-SCN11 battery, the CCB23-100BT-07N-N charge and communication base and a 3 m CBL-500-300-S00 USB cable. A power supply is not listed.

How far does the standard-range model read?

Honeywell rates SR models from contact to arm's length, for example 13 mil UPC up to 634 mm (24.96 in). For longer distances, Honeywell offers XR and XLR models.

How long does the battery last?

Up to 100,000 scans per charge, or about 14 hours at 2 scans per second. Recharging takes 4 hours from a USB BC1.2 port or 5 V 3 A power supply.

Can it be used in cold environments?

Honeywell rates operation down to -20 °C (-4 °F) when not charging, and drop testing covers temperatures down to -30 °C. Charge it between 5 and 35 °C (41 and 95 °F).
