Impinj Speedway Revolution R220 UHF RFID Reader, 2-Port, FCC - IPJ-REV-R220-USA2M1
Impinj Speedway Revolution R220 UHF RFID Reader, 2-Port, FCC - IPJ-REV-R220-USA2M1
Compatible with:
IPJ-REV-R220-USA2M1
Couldn't load pickup availability
Free Shipping Over $500
Fully Secure Checkout
Shop with confidence
Customer Support
Need help choosing the right configuration?
Talk with a Spartan POS hardware specialist about compatibility, accessories, quantities, or deployment requirements.
Product Description
The Impinj Speedway Revolution R220 is a 2-port UHF RAIN RFID fixed reader for smaller portals, shelf zones and checkpoints. IPJ-REV-R220-USA2M1 is the FCC (US, Canada, Mexico) model.
Key specifications
| Manufacturer part number | IPJ-REV-R220-USA2M1 |
|---|---|
| Region | FCC (United States, Canada, Mexico) |
| Air protocol | EPCglobal UHF Class 1 Gen2 / ISO 18000-63 (RAIN RFID) |
| Antenna ports | 2; up to 16 read zones with two Speedway Antenna Hubs |
| Max transmit power | 32.5 dBm |
| Receive sensitivity | -84 dBm (typical) |
| Read rate | Up to 200 tag reads per second |
| Power | IEEE 802.3af PoE or 24 V DC AC-DC adapter |
Best for
- Small portals, single-door and checkpoint reads
- Cost-sensitive expansions of an existing Speedway deployment
Works with
- IPJ-A6001-000 - Speedway Antenna Hub (requires firmware 7.6.0.240 or later on the R220 and the GPIO adapter)
- IPJ-A6051-000 - GPIO Adapter for Antenna Hub
- IPJ-A5000-000 - GPIO box
- IPJ-A2003-000 - 24 V DC power supply (requires AC cord)
- IPJ-A2051-USA - US AC cord
- IPJ-A2010-000 - 30 W PoE+ midspan injector (requires AC cord)
Plan to buy separately
- RAIN RFID antennas and RP-TNC antenna cables (not supplied with the reader)
- A power source: PoE switch or injector, or the 24 V adapter IPJ-A2003-000 plus AC cord
Product status
Current but legacy. Impinj stated in July 2025 that the R220 and R420 remain available. For new projects, compare the R700 series.
See also: IPJ-R700-341-B.
Choosing between models

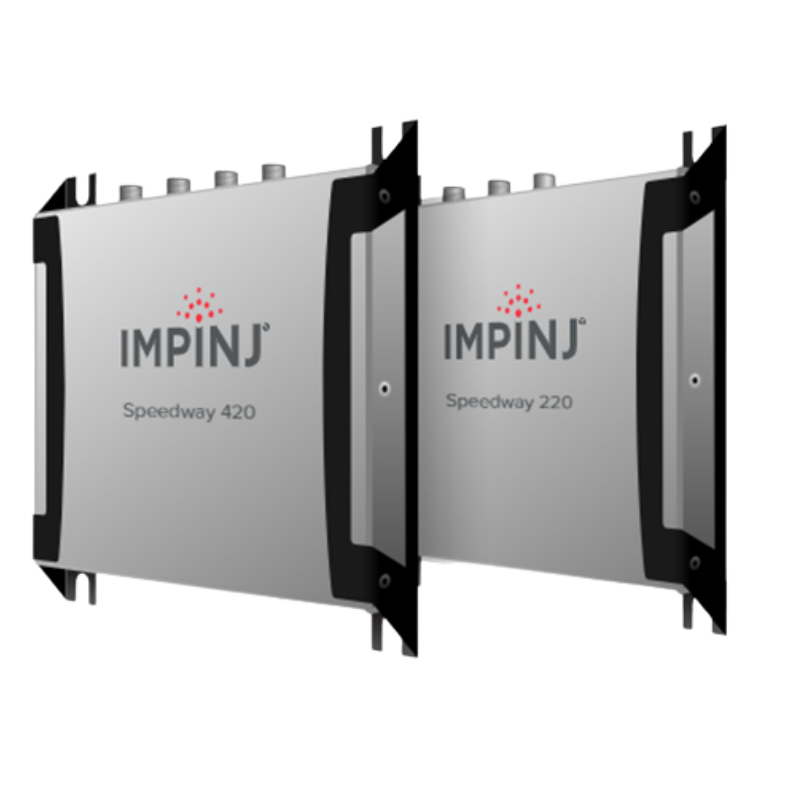

R420 vs R220: same chassis and processor; the R420 has 4 antenna ports and up to 1,100 reads per second, the R220 has 2 ports and up to 200 reads per second.
Specifications are taken from Impinj-published documents (datasheets, product change notices and installation guides). Confirm the exact configuration, regulatory region and your application requirements with Impinj documentation before ordering.
