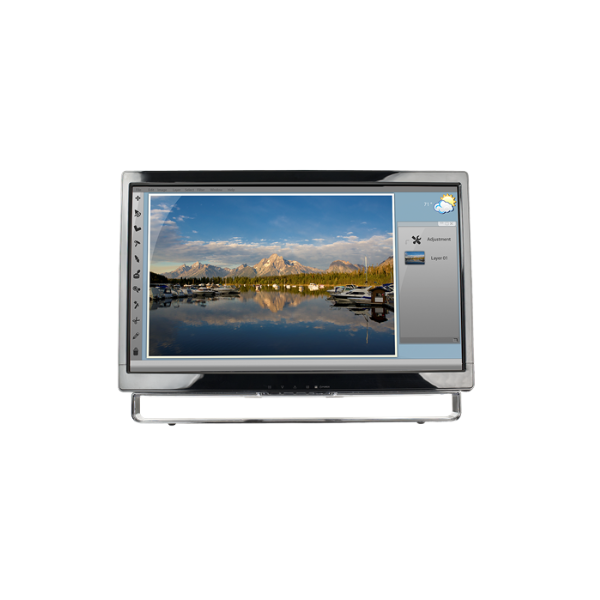

Planar PXL2230MW 22" Touch Screen Desktop Monitor (997-7039-00)
Planar PXL2230MW 22" Touch Screen Desktop Monitor (997-7039-00)
Compatible with:
997-7039-00
Couldn't load pickup availability
Free Shipping Over $500
Fully Secure Checkout
Shop with confidence
Customer Support
Need help choosing the right configuration?
Talk with a Spartan POS hardware specialist about compatibility, accessories, quantities, or deployment requirements.
Product Description
The Planar PXL2230MW (Planar part number 997-7039-00) is a 22-inch class widescreen touch screen monitor with a 21.5-inch viewable, Full HD (1920 x 1080) edge-lit LED LCD panel. It uses optical dual-touch technology with a USB touch interface and accepts HDMI, DVI-D and VGA video. Planar designed it for multimedia, education, computer lab and classroom use, and documents it as Windows HID compatible, so no additional touch driver is needed.
Key features
- 21.5-inch viewable (22-inch class) Full HD 1920 x 1080 edge-lit LED LCD with a 16:9 aspect ratio
- Optical touch with two touch points and finger or stylus input over USB
- HDMI, DVI-D (with HDCP) and VGA video inputs
- Two built-in 1 W speakers with an audio input
- Blue light reduction presets (Video, Web Browsing, Reading and Low Light) selectable from the front buttons
- Built-in 100 mm VESA mount, Kensington security slot and multi-language on-screen display
Specifications
| Planar part number | 997-7039-00 |
|---|---|
| Viewable size | 21.5" diagonal (18.77" x 10.56") |
| Display type | Edge-lit LED LCD |
| Resolution and aspect ratio | 1920 x 1080 (Full HD), 16:9 |
| Brightness | 250 cd/m² without touchscreen; 200 cd/m² with touchscreen |
| Contrast ratio | 1000:1 (typical) |
| Response time | 5 ms (typical) |
| Viewing angle | 170° horizontal, 160° vertical |
| Touch technology | Optical, 2 touch points, USB interface |
| Video inputs | VGA (D-sub 15-pin), DVI-D 24-pin with HDCP, HDMI |
| Other connections | USB-B (touch), audio port, AC power input |
| Speakers | 2 x 1 W |
| Operating system compatibility | Windows 11, 10 and 7 (Planar spec sheet) |
| Power | Internal power supply, 100-240 VAC, 25 W typical (under 0.5 W standby) |
| Mounting | Built-in 100 mm VESA (rear) |
| Dimensions (W x H x D) | 20.3" x 14.7" x 4.9" with stand; 20.3" x 12.9" x 2.8" without stand |
| Weight | 9.9 lb (4.5 kg); 8.9 lb (4.0 kg) without stand |
| Operating temperature | 0 to 40°C |
| Recommended usage | Up to 16 hours per day |
| Approvals | UL/cUL, CE, FCC-B, RoHS |
What's in the box
Planar lists the monitor, power cord, VGA cable, DVI cable, USB cable (A to B), audio-in cable and user's guide. An HDMI cable is not included.
Typical applications
- Classroom and computer lab workstations
- Multimedia and education software
- Windows desk or counter applications that use touch input, within Planar's recommended use of up to 16 hours per day
Compatibility
Planar documents the PXL2230MW as Windows HID compatible over its USB touch interface, so no additional software driver is required. Touch calibration and reset are handled from Tablet PC Settings in the Windows Control Panel. Planar's spec sheet lists Windows 11, 10 and 7.
Frequently asked questions
Is the Planar PXL2230MW a 22-inch or 21.5-inch monitor?
Planar markets the PXL2230MW as a 22-inch touch screen monitor. The viewable area measures 21.5 inches diagonally (18.77 x 10.56 inches).
What kind of touch screen does the PXL2230MW use?
It uses optical touch with two touch points, connected to the computer by USB. Planar lists finger and stylus input.
Do I need to install a touch driver?
Not on Windows. Planar documents the monitor as Windows HID compatible over USB with no additional software driver required, and its spec sheet lists Windows 11, 10 and 7.
Which video inputs does it have, and is an HDMI cable included?
The monitor has VGA, DVI-D (with HDCP) and HDMI inputs. VGA and DVI cables are in the box, but an HDMI cable is not included.
Can the PXL2230MW be mounted on a wall or monitor arm?
Yes. It has a built-in 100 mm VESA mount on the back. Planar's user guide describes removing the stand before mounting, and the wall mount or arm is not included.
