rf IDEAS Wiegand to USB Converter- OEM-W2USB-V3

OEM-W2USB-V3 — rf IDEAS Wiegand to USB Converter

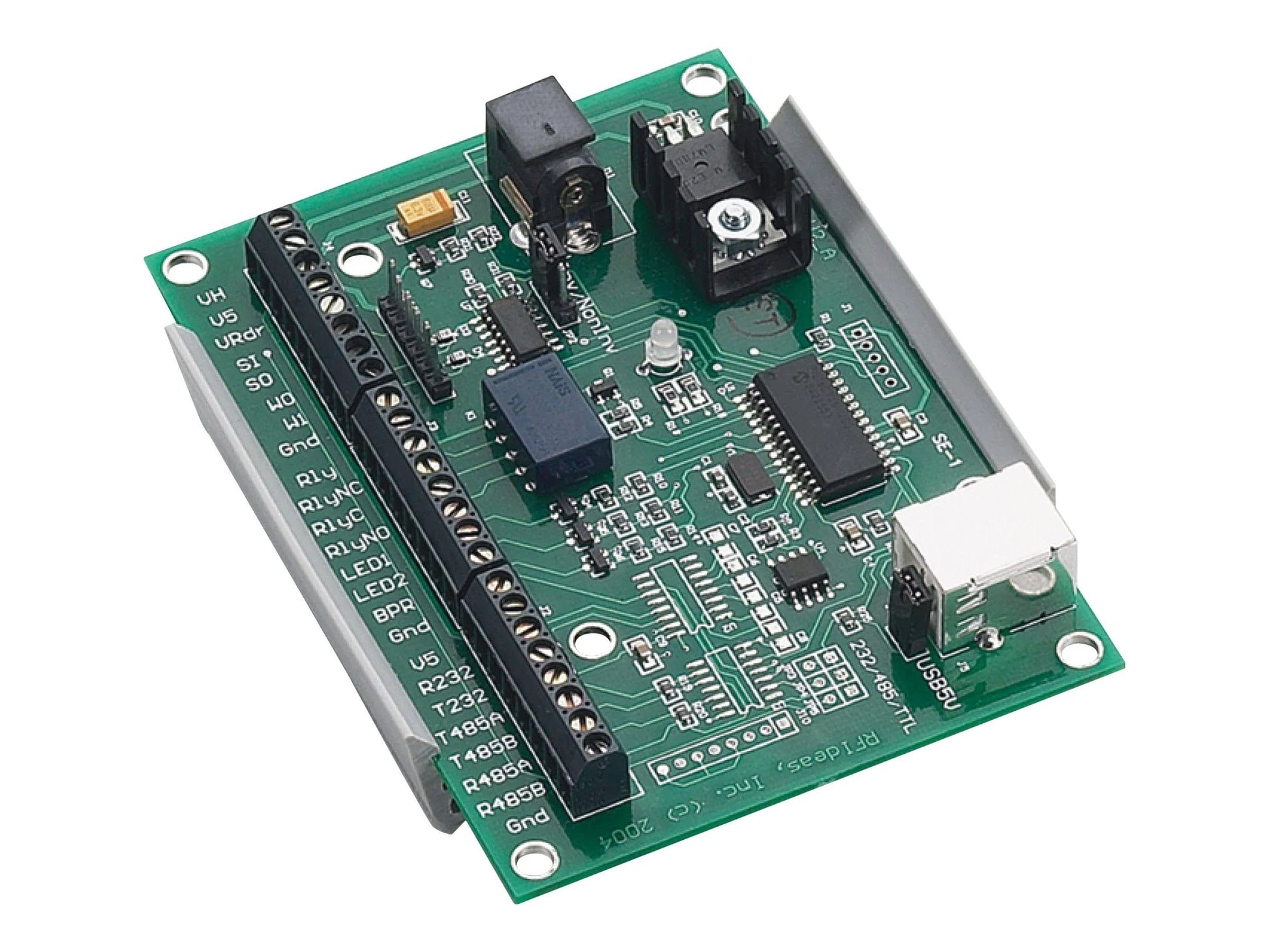

The OEM-W2USB-V3 is a configurable Wiegand-to-USB converter board from rf IDEAS, designed to bridge traditional Wiegand-based access control readers with computers, terminals, kiosks, PLCs, and other USB-enabled host systems. It allows organizations to reuse existing proximity, contactless smart card, or Wiegand-output credential readers in applications beyond door access, including identity verification, time and attendance, machine access, workflow tracking, and software-based authentication.

At its core, the OEM-W2USB-V3 converts Wiegand card-reader data into a USB format that can be consumed by a connected host. Depending on the application and configuration, the converted credential data can be sent as keyboard-style keystrokes or integrated through supported software-development methods. This makes the device useful in environments where an access badge needs to act as an input credential for a workstation, kiosk, terminal, shop-floor station, or custom application.

Product Overview

The OEM-W2USB-V3 is built for organizations that already use Wiegand readers and want to extend badge-based identification into digital systems. Many facilities use Wiegand readers for physical access control, but those same ID badges may also be valuable for logging into software, starting jobs on industrial equipment, identifying employees at time clocks, verifying operators at workstations, or capturing user identity in point-of-service workflows.

Rather than replacing the reader infrastructure, the OEM-W2USB-V3 provides an interface layer between the existing Wiegand reader and a USB host. The converter receives credential data from the reader, processes the selected Wiegand format, and outputs the data in a way the connected system can use.

Because it is configurable, the device can support a range of card formats and data-handling requirements. This flexibility is especially important in enterprise, manufacturing, education, healthcare, government, and security environments where badge formats may differ by facility, department, or credential type.

Key Features

The OEM-W2USB-V3 supports integration of standard Wiegand-based reader technologies into USB-connected applications. It is designed to work with Wiegand-output readers, including many proximity and contactless smart card reader systems.

Key capabilities include:

• Converts Wiegand reader output to USB
• Supports major Wiegand data formats
• Configurable flash memory for card-data conversion
• Can output credential data as keystrokes for simple host integration
• Suitable for use with terminals, computers, kiosks, PLC-related workflows, and embedded systems
• Enables existing ID badges to be used for applications beyond physical door access
• Useful for shop-floor data collection, user verification, time tracking, and access-controlled workflows
• Designed for OEM, embedded, and system-integration environments

Common Use Cases

1. Time and Attendance

The OEM-W2USB-V3 can be used to connect a Wiegand badge reader to a time clock, attendance terminal, or workforce-management workstation. Employees can present their existing access badge, and the converted badge data can be passed to the attendance software through USB.

This is useful for companies that want employees to use the same ID credential for both building access and time tracking.

2. Machine Monitoring and Operator Identification

In manufacturing and industrial environments, the converter can be used to identify which employee or operator is using a machine, production station, or PLC-connected workflow. A Wiegand reader can be mounted near the equipment, and the OEM-W2USB-V3 can translate the badge read into USB data for the connected host system.

This can support operator accountability, job tracking, machine access control, production reporting, and audit trails.

3. Shop-Floor Data Collection

The OEM-W2USB-V3 is well suited for shop-floor environments where employees need to scan or present a badge before starting a work order, recording labor, accessing a terminal, or logging production steps. The converter allows the organization to use existing ID badges rather than issuing separate barcode cards, PINs, or login credentials.

4. Badge Verification

Organizations can use the converter to verify badge identity at a workstation, check-in station, security desk, visitor-management station, or administrative terminal. When a card is presented to a Wiegand reader, the converter sends the card data to the connected host for lookup, validation, or logging.

5. Kiosks and Self-Service Terminals

The OEM-W2USB-V3 can be used in kiosks where users need to identify themselves with an access badge. Examples include employee self-service kiosks, secure print-release stations, cafeteria or payment terminals, training stations, equipment checkout systems, and controlled-access service points.

The USB output makes it easier to integrate badge input into kiosk software without requiring a full access-control panel.

6. PC, LAN, and Server Access Control

In environments where badge-based identification is used for digital access workflows, the converter can help bridge a physical credential reader to a computer or server-connected application. Badge reads can be used to trigger authentication, populate a username or ID field, or support custom login workflows.

7. Outdoor Reader Integration

The OEM-W2USB-V3 is particularly useful when an organization needs WAVE ID or pcProx-style functionality but also requires a reader with a longer read range or outdoor-rated installation. In those cases, an external Wiegand reader can be installed in the desired location, while the converter provides the USB interface to the host system.

8. Legacy System Modernization

Many organizations already have Wiegand readers installed and do not want to replace them. The OEM-W2USB-V3 allows those readers to be reused in newer USB-connected systems, helping reduce hardware replacement costs and simplify migration projects.

Practical Integration Examples

A business could mount a Wiegand reader at a warehouse workstation and connect it through the OEM-W2USB-V3 to a computer running inventory software. When an employee presents their badge, the software receives the employee ID and records who performed the transaction.

A manufacturer could connect the converter to a production terminal so operators must badge in before starting a machine job. The system can then associate production output, downtime, defects, or quality checks with the correct operator.

A school, hospital, or corporate facility could use the converter at a secure kiosk where staff badge in to access internal systems, print documents, or confirm attendance.

A system integrator could embed the OEM-W2USB-V3 into a custom enclosure or terminal to provide Wiegand badge input without designing a Wiegand-to-USB interface from scratch.

Benefits

The main benefit of the OEM-W2USB-V3 is that it extends the value of existing badge and reader infrastructure. Instead of limiting ID badges to door access, organizations can use the same credential for operational, administrative, and software-based workflows.

Additional benefits include:

• Reduces the need for duplicate credentials
• Helps unify physical and digital identity workflows
• Simplifies integration with USB-connected systems
• Supports flexible Wiegand card-format configurations
• Enables reuse of existing Wiegand readers
• Useful for custom OEM and embedded applications
• Helps improve accountability in operational environments
• Supports faster user identification than manual entry or PIN input

Ideal Applications

The OEM-W2USB-V3 is ideal for:

• Access-control system integrators
• Manufacturing facilities
• Warehouses and distribution centers
• Time and attendance deployments
• Employee check-in stations
• Secure kiosks
• Badge-verification terminals
• Shop-floor data collection systems
• PLC-adjacent operator identification workflows
• Custom OEM terminal builders
• Organizations standardizing on employee badge identity

Summary

The OEM-W2USB-V3 rf IDEAS Wiegand to USB Converter is a flexible interface board that allows Wiegand-based card readers to communicate with USB-enabled systems. By converting badge-reader data into a usable USB output, it helps organizations extend access-control credentials into time tracking, machine access, kiosk authentication, badge verification, shop-floor data collection, and custom software workflows.

It is especially valuable for businesses that want to reuse existing Wiegand readers and ID badges while adding modern USB connectivity to computers, terminals, kiosks, or embedded systems.
