SAM4s SAP-630II RT Raised Keyboard Android POS Terminal with Lifetime Software
SAM4s SAP-630II RT Raised Keyboard Android POS Terminal with Lifetime Software
Compatible with:
SAP-630II-RT
Couldn't load pickup availability
Free Shipping Over $500
Fully Secure Checkout
Product Description

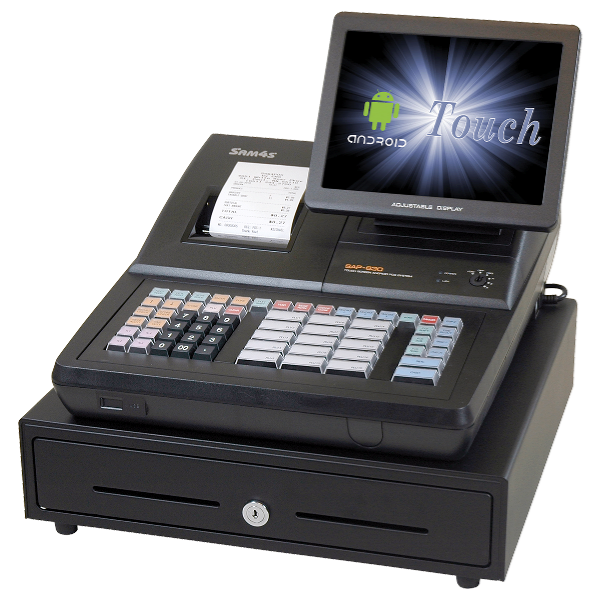

The SAM4s SAP-630II RT is a SAM4s SAP-630II Series hybrid ECR-style Android POS terminal with a raised keyboard, 9.7 inch touch display, integrated 80mm thermal receipt printer, rear customer display, built-in cash drawer, and included lifetime SAM4POS software. It is designed for retailers that want the familiar workflow of a cash register with the flexibility of an open architecture POS terminal.
This model is a strong fit for convenience stores, liquor stores, tobacco stores, grocery stores, cafeterias, food courts, quick service restaurants, coffee shops, concessions, thrift stores, bakeries, dry cleaners, retail scanning counters, and other merchants that need fast checkout and shortcut-key operation.
Search Quick Answer
Choose the SAM4s SAP-630II RT if you need an all-in-one SAM4s Android POS terminal with a raised keyboard, built-in 80mm receipt printer, customer display, cash drawer, touchscreen, multiple serial ports, USB, LAN, and included lifetime SAM4POS software. The raised keyboard is usually the better choice when cashiers prefer physical keys, tactile feedback, and a more traditional electronic cash register feel.
Compatibility depends on your POS software, operating system, connection type, drivers, accessories, and configuration. Confirm compatibility before ordering.
Best For
- Convenience stores and neighborhood markets
- Liquor, beer, wine, and tobacco stores
- Small grocery stores and specialty food stores
- Cafeterias, concessions, bakeries, and quick service counters
- Retail stores that want keyboard shortcuts plus a touchscreen
- Merchants replacing an older cash register with a POS-style terminal
Lifetime SAM4POS Software Included
This SAP-630II RT listing includes lifetime SAM4POS software. SAM4POS is designed for food, beverage, and retail businesses that need fast transaction entry, manager programming, reporting, remote printer support, scanning, label printing, scale workflows where supported, payment readiness, peripheral support, and remote support capabilities.
SAM4POS helps operators manage day-to-day POS functions from a register-style terminal with touchscreen control, programmable keys, menu and item setup, reporting, and store operation tools. This gives merchants a more complete solution than a basic cash register while keeping a familiar checkout layout.
Programming, payment setup, merchant processing, installation, training, optional modules, future upgrades, service plans, peripherals, cables, accessories, and support beyond what is specifically quoted may be separate. Confirm your exact software, payment, programming, and support package before ordering.
Raised Keyboard POS Terminal
The SAM4s SAP-630II RT includes up to 90 programmable keyboard locations. This layout gives cashiers quick access to frequently used items, departments, tenders, and functions without relying only on the touchscreen.
Need the other keyboard style? View the SAM4s SAP-630II FT Flat Keyboard Android POS Terminal.
What Is Included in the SAP-630II RT
- 9.7 inch adjustable TFT-LCD resistive touchscreen
- Raised keyboard with up to 90 programmable locations
- Integrated 80mm direct thermal drop-and-print receipt printer
- Commercial-grade cash drawer with lock, key, and two media slots
- Rear pop-up customer display
- Multiple peripheral ports including serial, USB, LAN, cash drawer, and SDHC-compatible storage
- Android 6.0 Marshmallow operating system
- Lifetime SAM4POS software included
Why Buy This From Spartan POS?
Spartan POS sells and supports POS hardware for retail, grocery, liquor, convenience, tobacco, restaurant, and specialty store environments. Our team can help you compare the raised keyboard and flat keyboard SAP-630II models, review compatibility, and choose the right accessories before you order.
Complete the checkout station with compatible barcode scanners, receipt printers, cash drawers, customer displays, payment terminals, label printers, and labels from Spartan POS.
Key Features
- Hybrid ECR-style POS terminal design for merchants that like keyboard-driven checkout
- Included lifetime SAM4POS software for retail, food, and beverage workflows
- 9.7 inch touch display for touchscreen POS operation
- Raised keyboard for frequently used items and shortcut keys
- Integrated 80mm thermal printer with quick drop-in paper loading
- Built-in rear customer display so customers can view prices and totals
- Integrated commercial-grade cash drawer with lock and media slots
- Four serial ports, two USB ports, LAN, and multiple drawer connections for peripherals
- Optional integrated magnetic card reader and optional Wi-Fi/Bluetooth combo module depending on configuration
- SDHC-compatible port for utilities such as save/load, reports, screen capture, firmware updates, and graphics uploads
SAM4POS Software Highlights
- Designed for food, beverage, and retail POS environments
- Supports touchscreen POS operation with register-style workflow
- Helps manage items, departments, functions, employees, and store operations depending on configuration
- Supports reporting and management functions for daily business visibility
- Can support barcode scanning, remote printing, label printing, scale-related workflows, and peripherals depending on setup
- Remote support capability may be available depending on network, software setup, and service arrangement
- Payment processing readiness depends on payment provider, devices, certification, and configuration
SAP-630II Series Specifications
| Specification | SAM4s SAP-630II Series |
|---|---|
| Terminal style | Hybrid ECR-style open architecture all-in-one Android POS terminal |
| Software | Lifetime SAM4POS software included |
| Operating system | Android 6.0 Marshmallow |
| Processor | Intel Braswell Celeron N3160 |
| Memory | 2GB DDR3 RAM, 64GB eMMC flash |
| Operator display | 9.7 inch TFT-LCD touch screen, 1024 x 768 resolution, 5-wire resistive touch |
| Customer display | Pop-up turret, 2 lines by 16 characters |
| Printer | 80mm direct thermal, drop-and-print, 100mm per second |
| Cash drawer | 5 bill, 5 or 6 coin insert, drawer lock, and two media slots |
| Serial ports | COM1 and COM2 DB9M with pin 9 voltage, COM3 and COM4 RJ45 with pin 1 voltage |
| USB | Two USB 2.0 ports, one front and one rear |
| LAN | RJ45 10/100 Base-T Ethernet |
| Cash drawer ports | Three 24V drawer connections, two rear RJ12 and one internal |
| SD | One SDHC compatible port |
| Wireless | Optional Wi-Fi and Bluetooth combo module |
| Power supply | Internal 100-240V, 50-60Hz |
| Power usage | Approx. 25W |
| Operating temperature | 32 degrees F to 104 degrees F |
| Unit dimensions and weight | 16-1/2 in W x 15-3/4 in D x 14-1/8 in H, 32.7 lbs |
| Shipping carton | 22 in L x 21 in W x 18 in H, 33 lbs |
Flat Keyboard vs Raised Keyboard
| Keyboard Type | Best Use | Programmable Locations |
|---|---|---|
| Flat spill-resistant keyboard | Higher key count, easier wipe-down surface, larger department or item layouts | 160 programmable locations |
| Raised keyboard | Traditional cash register feel, tactile operation, cashier muscle memory | Up to 90 programmable locations |
Important Compatibility Notes
The SAP-630II is a POS terminal that must be matched with compatible programming, peripherals, drivers, payment processing, network settings, and store workflow requirements. Barcode scanners, scales, external printers, kitchen printers, label printers, payment devices, and other peripherals must be confirmed before purchase.
SAM4POS software is included with this listing, but the exact programming, installation, payment processing, merchant services, optional services, support, and peripheral configuration should be confirmed before ordering.
Recommended Add-Ons
- Barcode scanners for retail scanning, liquor, tobacco, grocery, and convenience items
- Payment terminals for supported card and contactless payment workflows
- Label printers for shelf labels, barcode labels, price labels, and back-office labels
- Labels for inventory, shelf, barcode, and product labeling workflows
- Receipt printers for stores needing additional print stations or replacement printers
- Cash drawers for replacement or additional cash handling setups
Frequently Asked Questions
Is the SAM4s SAP-630II a cash register or a POS terminal?
The SAP-630II is best described as a hybrid ECR-style POS terminal. It has the familiar keyboard, printer, customer display, and cash drawer layout of an electronic cash register, but it runs Android POS application software instead of operating only as a traditional standalone cash register.
Does the SAP-630II include lifetime software?
Yes. This listing includes lifetime SAM4POS software. Programming, payment setup, merchant processing, installation, training, optional modules, future upgrades, service plans, peripherals, cables, accessories, and support beyond what is specifically quoted may be separate.
Does the SAP-630II include the printer, cash drawer, and customer display?
Yes. The SAP-630II Series is designed as an all-in-one POS bundle with a 9.7 inch touch screen, integrated 80mm thermal printer, cash drawer, keyboard, rear customer display, and secure SD port.
What is the difference between the raised keyboard and flat keyboard models?
The raised keyboard model uses physical raised keys for a traditional cash register feel. The flat keyboard model uses a spill-resistant flat keyboard with more programmable locations. The right choice depends on cashier workflow, menu size, store type, and preference.
Can I connect scanners, payment devices, or other peripherals?
The SAP-630II Series includes multiple serial ports, USB ports, LAN, cash drawer connections, and an SDHC-compatible port. Peripheral support depends on software, drivers, cables, port settings, and configuration.
Is this good for convenience stores, grocery stores, liquor stores, and tobacco stores?
Yes, the SAP-630II Series is commonly considered for convenience stores, grocery, liquor, tobacco, retail scanning, quick service, cafeterias, bars, concessions, thrift stores, and other counter-service operations. The final fit depends on your software, payment, and workflow requirements.
Can Spartan POS help me choose the right version?
Yes. Spartan POS can help you compare the flat keyboard and raised keyboard versions, review POS software requirements, and match the terminal with compatible accessories for your store.
Bottom Line
The SAM4s SAP-630II RT is a strong option for merchants who want a SAM4s all-in-one Android POS terminal with a raised keyboard, touchscreen, built-in thermal printer, customer display, cash drawer, and included lifetime SAM4POS software. It gives stores a cash-register-style workflow with POS terminal flexibility for retail, convenience, liquor, tobacco, grocery, food service, and counter-service environments.
