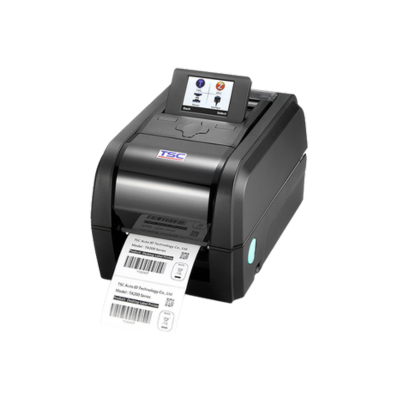

TSC TX210 TX Series 4-Inch Performance Desktop Printer, 203 dpi (TX210-A001-1201)
TSC TX210 TX Series 4-Inch Performance Desktop Printer, 203 dpi (TX210-A001-1201)
Compatible with:
TX210-A001-1201
Couldn't load pickup availability
Free Shipping Over $500
Fully Secure Checkout
Shop with confidence
Customer Support
Need help choosing the right configuration?
Talk with a Spartan POS hardware specialist about compatibility, accessories, quantities, or deployment requirements.
Product Description
The TSC TX210, part number TX210-A001-1201, is the 203 dpi model in TSC's TX Series 4-inch performance desktop printers. It prints thermal transfer or direct thermal labels at up to 8 in. per second with a 4.25 in. print width, holds 300 m ribbons on a 1 in. core, and connects by USB, Ethernet, RS-232 serial and USB Host. TSC positions the TX Series for high-volume 4 x 6 shipping labels as well as product marking and compliance labels.
Key features
- Up to 8 in. (203 mm) per second at 203 dpi, with a 4.25 in. (108 mm) maximum print width.
- 300 m ribbon capacity on a 1 in. core, plus 5 in. OD label rolls.
- Standard interfaces: USB 2.0, RS-232, USB Host and internal 10/100 Mbps Ethernet.
- Rugged clamshell design with a double-wall housing structure, ADF hinge and industrial-grade hybrid motor.
- TPH Care: self-diagnostic printhead monitoring that detects bad dots in real time.
- Remote management with TSC Console and SOTI Connect (license required).
Specifications
| Print method | Thermal transfer and direct thermal |
|---|---|
| Resolution | 203 dpi (8 dots/mm) |
| Maximum print speed | 8 in. (203 mm) per second |
| Maximum print width | 4.25 in. (108 mm) |
| Maximum print length | 1,000 in. (25,400 mm) |
| Media width | 0.75 to 4.4 in. (19 to 112 mm) |
| Media | Continuous, die-cut, black mark, fan-fold or notch (outside wound); 2.17 to 10 mil thick; 1 to 1.5 in. cores; 5 in. (127 mm) OD roll capacity |
| Ribbon | 300 m long, 67 mm max. OD, 1 in. core (ink coated outside); 1.6 to 4.3 in. (40 to 110 mm) wide |
| Standard interfaces | USB 2.0, RS-232, USB Host, internal 10/100 Mbps Ethernet |
| Printer language | TSPL-EZD (compatible with EPL, ZPL, ZPL II and DPL) |
| Memory | 128 MB flash; 128 MB SDRAM; microSD slot for up to 32 GB |
| Operating environment | 5 to 40°C (41 to 104°F), 25 to 85% non-condensing |
What's in the box
TSC's TX210 Series datasheet lists these standard accessories:
- Quick start guide
- USB cable
- Power cord and external universal switching power supply
- Windows labeling software CD
Typical applications
- High-volume 4 x 6 shipping labels and receiving labels
- Product marking, compliance labeling and inventory control
- Specimen labeling, pharmacy labeling and patient tracking
- Asset tracking, shelf labeling and document management
How it compares
- TX210: 203 dpi, up to 8 ips, 4.25 in. print width, up to 1,000 in. print length.
- TX310: 300 dpi, up to 6 ips, 4.17 in. print width.
- TX610: 600 dpi, up to 4 ips, 4.17 in. print width, for very small, high-resolution labels.
Frequently asked questions
Can the TSC TX210 print 4 x 6 shipping labels?
Yes. TSC positions the TX Series for high-volume 4 x 6 shipping labels, and the TX210 has a 4.25 in. print width with media from 0.75 to 4.4 in. wide.
Does the TX210 print direct thermal and thermal transfer?
Yes, it supports both. Thermal transfer printing uses ribbons up to 300 m long on a 1 in. core (ink coated outside), 1.6 to 4.3 in. wide. Direct thermal printing uses direct thermal media without ribbon.
Does the TX210 support ZPL or EPL label formats?
TSC lists its TSPL-EZD printer language as compatible with EPL, ZPL, ZPL II and DPL, with Eltron (TPLE) and Zebra (TPLZ) translation that automatically converts each label format sent to the printer.
Does the TX210 have Wi-Fi or Bluetooth?
Not as standard; the standard interfaces are USB 2.0, RS-232, USB Host and 10/100 Mbps Ethernet. TSC lists an 802.11a/b/g/n/ac Wi-Fi and Bluetooth 4.2 combo module as a dealer option, and MFi Bluetooth 5.0 as a factory option.
Can a cutter or peeler be added?
Yes. TSC lists a peel-off module and a full-cut guillotine cutter as dealer options, and an external label roll mount and the KP-200 Plus keyboard display unit as user options.
