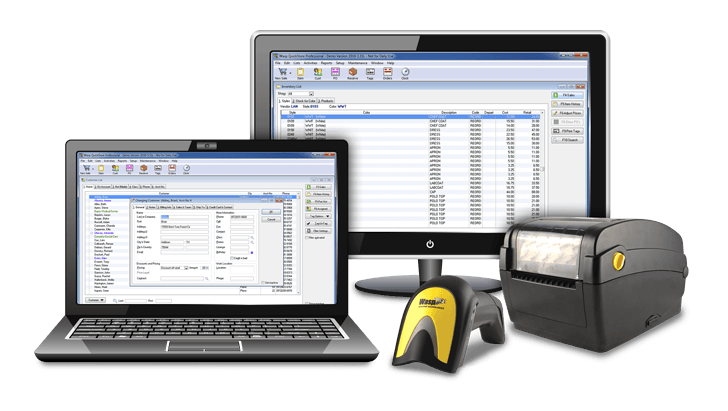

Create professional 1D and 2D barcode labels, print them on a versatile desktop thermal printer, and verify the finished barcodes with a rugged industrial scanner. This three-product bundle gives up to five users the essential tools for product identification, inventory, asset tagging, shipping, receiving and general barcode-label workflows.
The bundle combines three complementary products rather than three versions of the same tool. WaspLabeler +2D creates and manages the label format, the WPL305 produces the physical label, and the WDI7500 reads 1D and 2D barcodes for verification or data-entry workflows. Together, they provide a practical starting point for organizations building a Windows-based desktop barcode-labeling station.
Design barcode labels from more than 100 templates or create custom formats. Connect label fields to spreadsheets, databases and supported business-data sources.
Print short-life direct-thermal labels or longer-lasting thermal-transfer labels from one compact 203 dpi desktop platform.
Verify printed labels and scan product, asset, location or shipment barcodes with a rugged USB area imager designed for demanding work areas.
Workflow note: the scanner does not automatically validate database accuracy on its own. It reads the encoded barcode data and sends it to the active software field. Verification behavior depends on the application receiving the scan.
Create and scan item, SKU, bin, shelf, location and stock labels.
Produce asset labels and scan identifiers during audits, assignments and service workflows.
Print carton, routing, internal tracking and receiving labels, then scan them at the workstation.
Create product, price, retail, packaging and internal product-identification labels.
Build repeatable formats containing required text, graphics and supported barcode symbols.
Generate identifiers for files, documents, samples, records and other traceable materials.
| Component | Specification | Details |
|---|---|---|
| WPL305 Printer | Print method | Thermal transfer and direct thermal |
| WPL305 Printer | Resolution and speed | 203 dpi; up to 7 inches per second |
| WPL305 Printer | Print area | Maximum print width 4.25 inches; maximum print length 90 inches |
| WPL305 Printer | Media capacity | 0.78- to 4.4-inch media width; up to 5-inch outside-diameter roll; ribbon length up to 300 meters |
| WPL305 Printer | Interfaces | USB 2.0, RS-232 serial and Centronics parallel; optional external Ethernet print server |
| WPL305 Printer | Printer languages | WPL with ZPL and EPL emulation |
| WDI7500 Scanner | Scanning | Omnidirectional area imager for common 1D, stacked, postal and 2D symbologies |
| WDI7500 Scanner | Minimum resolution | 1D codes down to 4 mil; 2D codes down to 7.5 mil |
| WDI7500 Scanner | Connection | USB cable included |
| WDI7500 Scanner | Durability | IP65 sealing; rated for 6.6-foot / 2-meter drops |
| WDI7500 Scanner | Feedback | Beeper, LEDs and Green Spot visual good-read feedback |
| WaspLabeler +2D | Licensing | Five-user license, part number 633808105273 |
| WaspLabeler +2D | Data connectivity | Microsoft Excel, Microsoft Access, QuickBooks, Microsoft SQL Server, ODBC and delimited/external data sources |
| WaspLabeler +2D | Design capabilities | More than 100 templates, custom formats, serialization, filtering, sorting, graphics and supported 1D/2D barcode types |
| WaspLabeler +2D | Supported graphics | BMP, JPEG, PNG, TIFF, GIF and ICON |
Software qualification: WaspLabeler +2D is a Windows-oriented application. Published legacy specification sheets reference older Windows and Microsoft Office versions. Confirm the current software release, supported operating system, Office architecture, activation method and database requirements before deployment.
Consumables are not included unless stated on the current product offer. Direct-thermal labels do not use ribbon. Thermal-transfer labels require a compatible ribbon selected for the label material and durability requirement.
Yes. It includes the WDI7500 USB scanner, the WPL305 desktop printer and a five-user WaspLabeler +2D software license.
Yes. It supports direct-thermal printing with heat-sensitive media. Thermal-transfer printing uses a ribbon and is generally selected for longer-lasting or more durable labels.
Yes. The WDI7500 supports QR Code and other common 2D symbols, along with standard 1D, stacked and postal barcode formats.
The included part number is the five-user license. Confirm installation, activation and license-use requirements for the current software release before deployment.
Wasp lists connectivity with Microsoft Excel, Access, QuickBooks, Microsoft SQL Server and ODBC data sources. Confirm versions and data architecture before purchase.
The WPL305 accepts media from approximately 0.78 to 4.4 inches wide and prints up to 4.25 inches across.
Not unless the active product offer explicitly lists them. Choose label dimensions and material for the application; add ribbon when using thermal-transfer media.
It can read the finished barcode and send its data to the active application. Whether the scan is compared with an expected value depends on the software workflow receiving that data.
The WDI7500 is a rugged IP65 scanner. The WPL305 is a light- to medium-duty desktop printer, so very high-volume or harsh printer environments may require an industrial printer instead.
Yes. Contact Spartan POS for multi-unit pricing, media recommendations, additional licenses, deployment assistance and configuration review.
Technical details summarized from official Wasp documentation for the WDI7500, WPL305 and WaspLabeler +2D five-user license.
Share the label size, material, expected label life, print volume, barcode type, data source and workstation requirements. Spartan POS can help match the bundle with the appropriate labels, ribbons and deployment plan.
