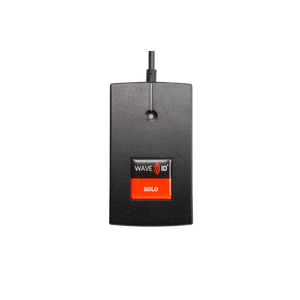

WAVE ID Solo SDK 13.56MHz CSN Black 6in USB Reader, RDR-7582AKU-C06
WAVE ID Solo read-only readers were designed for customers seeking to leverage their existing card system for applications beyond building access. Providing exceptional protection while maximizing security on devices such as printers, healthcare technologies, process controllers, autonomous robots and more. The WAVE ID Solo delivers plug and play functionality with proximity and contactless smart cards and integrates with all leading operating systems, applications and embedded controllers. The 13.56 MHz model is compatible with most contactless smart cards and the 125 kHz proximity model provides error-free identification for over 300 million physical access cards in use worldwide.
Ideal for time and attendance, training meetings, visitor management
Eliminates errors associated with individual ID, manual or keystroke entry
Integrates into your software or hardware product through the use of the Universal Software Developer’s Kit (SDK)
Reads nearly all proximity and contactless smart cards
Optional LEGIC® technology to serve multiple applications
Applicable for secure printing, healthcare applications, and process efficiencies
Fully programmable and customizable user defined fields
Protect and secure sensitive information
Dual 125/132 kHz or 13.56 MHz
1.0” – 3.0” (2.5 – 7.6cm) dependent upon card type and environmental conditions
Supported Card Types
For a full list of supported card types, click here.
6”, 16” & 6' (Custom Lengths Available. Call our Sales department at (866) 439-4884)
Quad-state LED (off, green, amber, red) and beeper
Desktop, Surface Mount, Non-Housed
USB Self-powered; PoE; Serial RS-232: several power options exist
USB, Serial RS-232, Ethernet
One year for material/workmanship defects.
Windows 7, 8, 10, Linux, macOS and Android
