Product Description

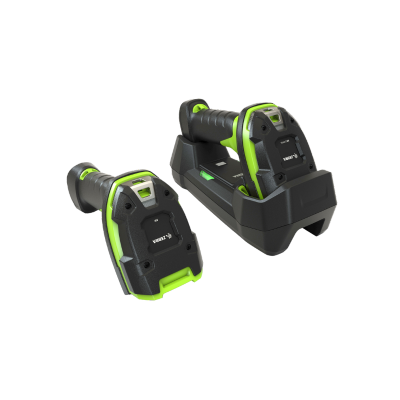

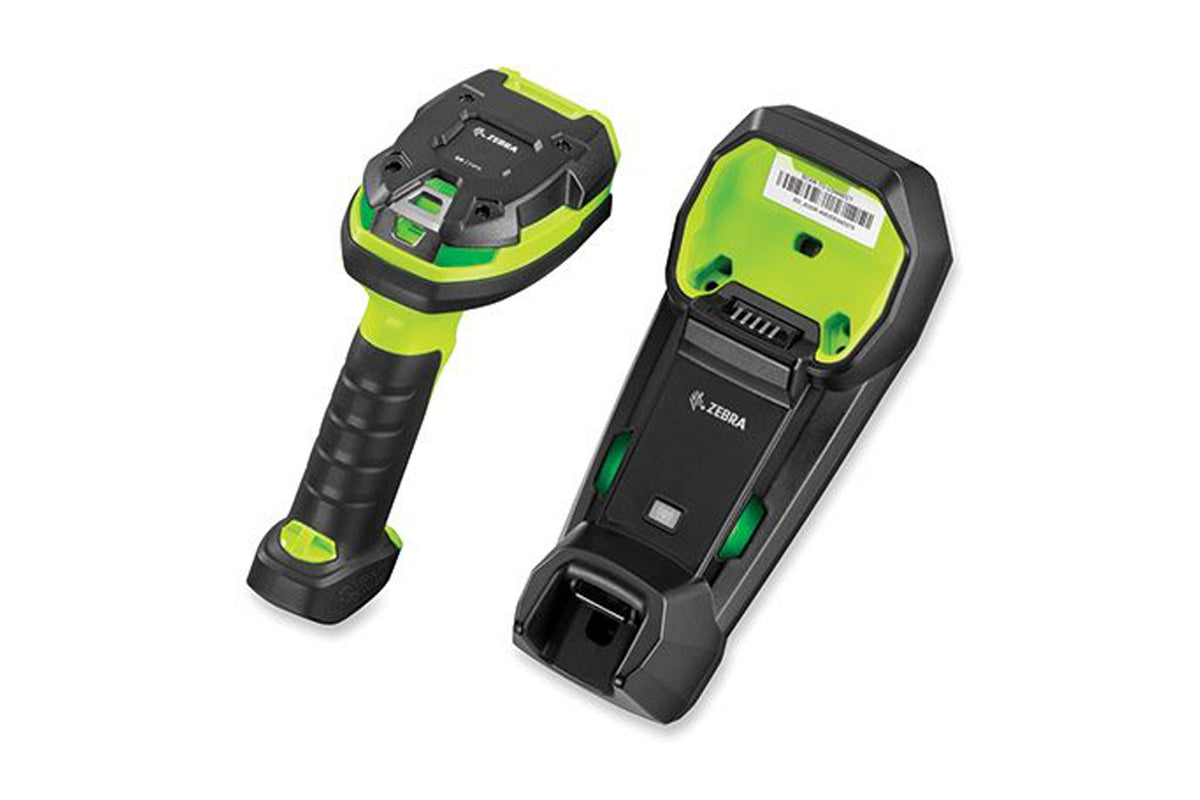

The Zebra LI3678-SR3U4210S1W is a USB kit for the LI3678-SR, the cordless standard range model in Zebra's LI3600 Series of ultra-rugged linear imagers for warehouse and manufacturing work. It reads 1D barcodes only, whether printed on labels or displayed on screens, and the kit includes the scanner, cradle, USB cable, power supply and line cords.
Key features
- 1D linear imager that reads damaged, dirty, poorly printed or shrink-wrapped 1D barcodes, with an aiming pattern designed for pick lists.
- Ultra-rugged: IP65 and IP68 sealing, multiple 10 ft. (3 m) drops to concrete at room temperature and 7,500 tumbles.
- More than 140,000 scans per charge from the PowerPrecision+ 3,100 mAh battery, with a charge gauge and battery health data.
- Cold-ready: cordless operation from -4° to 122° F (-20° to 50° C) for indoor, outdoor and freezer use.
- Virtual Tether and AutoConfig flag scanners left out of range or out of the cradle, and cradle-stored settings reconfigure a scanner for a new host.
- Wi-Fi Friendly Mode and ScanSpeed Analytics barcode performance metrics.
Specifications
| Manufacturer part number | LI3678-SR3U4210S1W |
|---|---|
| Configuration | Cordless USB kit, standard range, Industrial Green |
| Scan engine | 1D linear imager, 1,500 pixels; 35° field of view |
| Aimer and illumination | 655 nm laser aimer; two 617 nm amber LEDs |
| Decode ranges (typical) | UPC 13 mil: 1.0 to 31.0 in.; Code 39 20 mil: 1.0 to 42.0 in.; Code 39 7.5 mil: 1.5 to 19.0 in. |
| Symbologies | 1D only, including Code 39, Code 128, Code 93, Codabar, UPC/EAN, I 2 of 5 and GS1 DataBar |
| Wireless | Bluetooth Class 1, version 4.0 (LE); SPP and HID profiles; minimum 300 ft. (100 m) line of sight |
| Battery | PowerPrecision+ 3,100 mAh Li-Ion; 140,000+ scans per full charge |
| Drop and tumble | Multiple 10.0 ft. (3.0 m) drops at room temperature; multiple 8.0 ft. (2.4 m) drops from -4° to 122° F; 7,500 3.3 ft. (1.0 m) tumbles |
| Cordless size and weight | 7.3 in. H x 3.0 in. W x 5.6 in. D; 13.6 oz. (386.5 g) |
| Supported host interfaces | USB, RS232, Keyboard Wedge; Industrial Ethernet: EtherNet/IP, Profinet, Modbus TCP, standard TCP/IP |
What's in the box
- LI3678-SR0F003VZWW cordless scanner
- STB3678-C100F3WW standard cradle (charger, Bluetooth, multi-interface)
- CBA-U42-S07PAR shielded USB cable
- PWR-BGA12V50W0WW power supply with CBL-DC-451A1-01 DC line cord
- 23844-00-00R AC line cord
Typical applications
- Warehouse picking, receiving and shipping of 1D-labeled items
- Forklift workflows (AutoConfig lets a scanner move from forklift to shipping)
- Manufacturing plant floor scanning
- Freezer and cold storage operations
How it compares
The LI3600-SR reads 1D barcodes only. For 2D codes, Zebra's 3600 Series includes the DS3600-SR (standard range 1D/2D); for longer distances, the LI3600-ER (extended range 1D). The corded version of this scanner is the LI3608-SR.
Frequently asked questions
Does the LI3678-SR read 2D or QR codes?
No. The LI3600-SR is a 1D linear imager, and Zebra lists only 1D symbologies. For 2D barcodes such as QR Code or DataMatrix, Zebra offers the DS3600-SR in the same ultra-rugged series.
What is included in the LI3678-SR3U4210S1W kit?
The kit includes the LI3678-SR0F003VZWW cordless scanner, STB3678-C100F3WW cradle, CBA-U42-S07PAR USB cable, PWR-BGA12V50W0WW power supply, CBL-DC-451A1-01 DC line cord and 23844-00-00R AC line cord.
Can it be used in a freezer?
The cordless LI3678-SR operates from -4° to 122° F (-20° to 50° C). Zebra recommends a heated scanner holder to reduce condensation on the scan window when moving in and out of freezers.
How far away can it read barcodes?
Zebra lists typical ranges of 1.0 to 31.0 in. for 13 mil UPC and 1.0 to 42.0 in. for 20 mil Code 39, depending on print quality, contrast and lighting.
