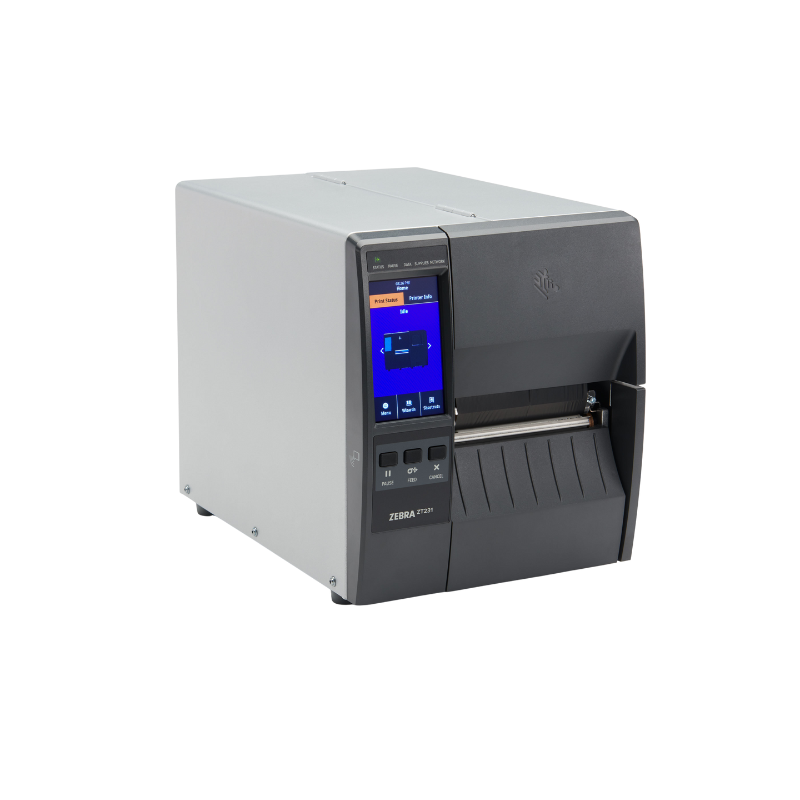

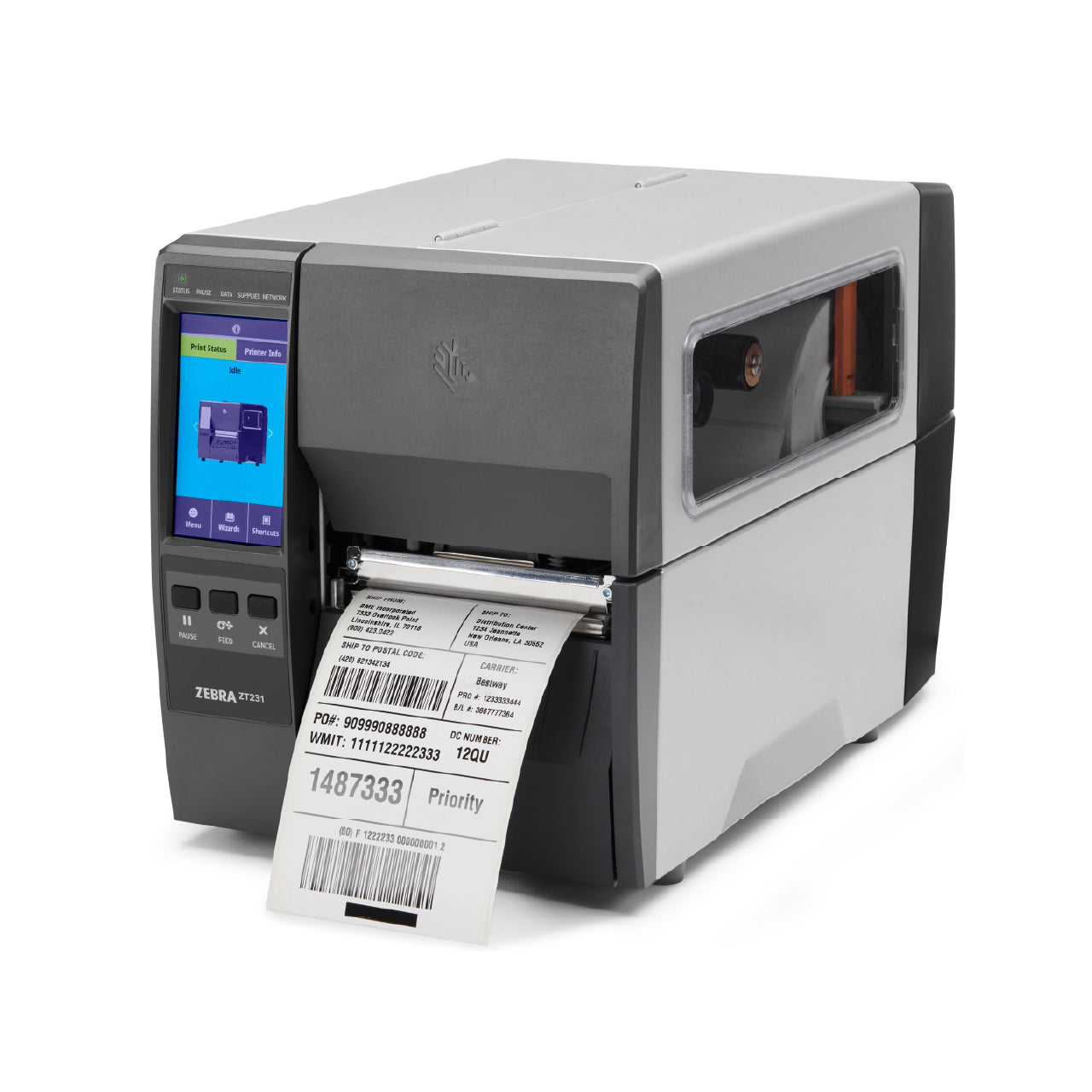

Zebra ZT231 4" Industrial Barcode Label Printer
Zebra ZT231 4" Industrial Barcode Label Printer
Compatible with:
ZT23142-T31000FZ
Couldn't load pickup availability
Free Shipping Over $500
Fully Secure Checkout
Shop with confidence
Customer Support
Need help choosing the right configuration?
Talk with a Spartan POS hardware specialist about compatibility, accessories, quantities, or deployment requirements.
Product Description
The Zebra ZT231 is a 4-inch industrial label printer with a metal frame and metal enclosures, a 4.3-inch color touch screen and standard USB, RS-232 serial, 10/100 Ethernet and USB Host ports. This page offers ten factory configurations of the Zebra ZT231: 203 or 300 dpi, direct thermal or thermal transfer, and a tear bar, cutter, or peeler with liner take-up.
Key features
- Up to 12 in. per second at 203 dpi (8 in. per second at 300 dpi).
- 4.09 in. (104 mm) maximum print width with media from 0.75 to 4.50 in. wide.
- 4.3-inch color touch screen and three-color status LEDs.
- Metal frame and enclosures with a bi-fold media door and side-loading media path.
- Large supplies: 8.0 in. OD media rolls on a 3 in. core and 450 m ribbons on thermal transfer models.
- ZPL and EPL: ZPL on all models; EPL on 203 dpi models.
Specifications
| Print methods | Direct thermal or thermal transfer, depending on configuration |
|---|---|
| Resolution | 203 dpi (8 dots/mm) or 300 dpi (12 dots/mm), depending on configuration |
| Maximum print speed | 12 ips (203 dpi); 8 ips (300 dpi) |
| Maximum print width | 4.09 in. (104 mm) |
| Maximum print length | 157 in. (203 dpi); 73 in. (300 dpi) |
| Media width | 0.75 to 4.50 in. (19.4 to 114 mm) |
| Media roll size | 8.0 in. OD on a 3.0 in. core; 6.0 in. OD on a 1.0 in. core |
| Media | 0.003 to 0.010 in. thick; continuous, die-cut, notch or black mark |
| Ribbon (thermal transfer only) | 1,476 ft (450 m); 2 to 4.33 in. wide; 1.0 in. core |
| Standard communications | USB 2.0, RS-232 serial, 10/100 Ethernet, USB Host; Bluetooth Low Energy |
| Dimensions / weight | Base model 17 in. L x 9.5 in. W x 11 in. H, 20 lb; with liner take-up unit 12.75 in. H, 24 lb |
How it compares
All ten share the 4.09 in. print width, touch screen and standard ports; they differ as follows:
| Part number | Resolution | Print method | Media handling |
|---|---|---|---|
| ZT23142-T01000FZ | 203 dpi | Thermal transfer | Tear bar |
| ZT23142-T21000FZ | 203 dpi | Thermal transfer | Cutter |
| ZT23142-T31000FZ | 203 dpi | Thermal transfer | Peel with liner take-up |
| ZT23142-D01000FZ | 203 dpi | Direct thermal | Tear bar |
| ZT23142-D21000FZ | 203 dpi | Direct thermal | Cutter |
| ZT23142-D31000FZ | 203 dpi | Direct thermal | Peel with liner take-up |
| ZT23143-T01000FZ | 300 dpi | Thermal transfer | Tear bar |
| ZT23143-T21000FZ | 300 dpi | Thermal transfer | Cutter |
| ZT23143-T31000FZ | 300 dpi | Thermal transfer | Peel with liner take-up |
| ZT23143-D01000FZ | 300 dpi | Direct thermal | Tear bar |
Typical applications
- Shipping, receiving and compliance labels
- Order picking and packing labels
- Work-in-process, product ID and serial number labels
- Retail price labels, return tags and buy-online-pick-up-in-store labels
Frequently asked questions
Does the Zebra ZT231 need a ribbon?
Only the thermal transfer (T) configurations use ribbon: 450 m standard length, 2 to 4.33 in. wide, on a 1 in. core. Direct thermal (D) configurations need no ribbon.
Can the ZT231 print 4 x 6 shipping labels?
Yes. It has a 4.09 in. maximum print width and accepts media 0.75 to 4.50 in. wide; Zebra lists shipping/receiving labeling among its applications.
Tear bar, cutter or peel: which should I choose?
Tear bar configurations tear labels off at the printer (minimum label length 0.7 in.). The cutter is a front-mount guillotine cutter (minimum 1 in.). Peel configurations use a front-mount passive peeler with a liner take-up spindle, a factory-fit option (minimum 0.5 in.).
What is the difference between the 203 dpi and 300 dpi models?
203 dpi models print up to 12 in. per second with a 157 in. maximum print length and support EPL and ZPL. 300 dpi models (12 dots/mm) print up to 8 in. per second with a 73 in. maximum print length and use ZPL.
Does the ZT231 have Wi-Fi?
Not as standard. The standard ports are USB 2.0, RS-232 serial, 10/100 Ethernet and USB Host; Zebra offers an 802.11ac Wi-Fi option card.
